MAX LIFE™ CARBIDE EDGE

The MAX LIFE™ process infuses tungsten carbide onto wear parts, creating the toughest, most economical, and longest-lasting tillage tools available. MAX LIFE™ CARBIDE EDGE is cost effective and increases the useful life of wear parts longer than other hard facing processes.  Years of rigorous field tests consistently show that the useful life is extended many times over, depending on the application.

Products available with MAX LIFE™ CARBIDE EDGE

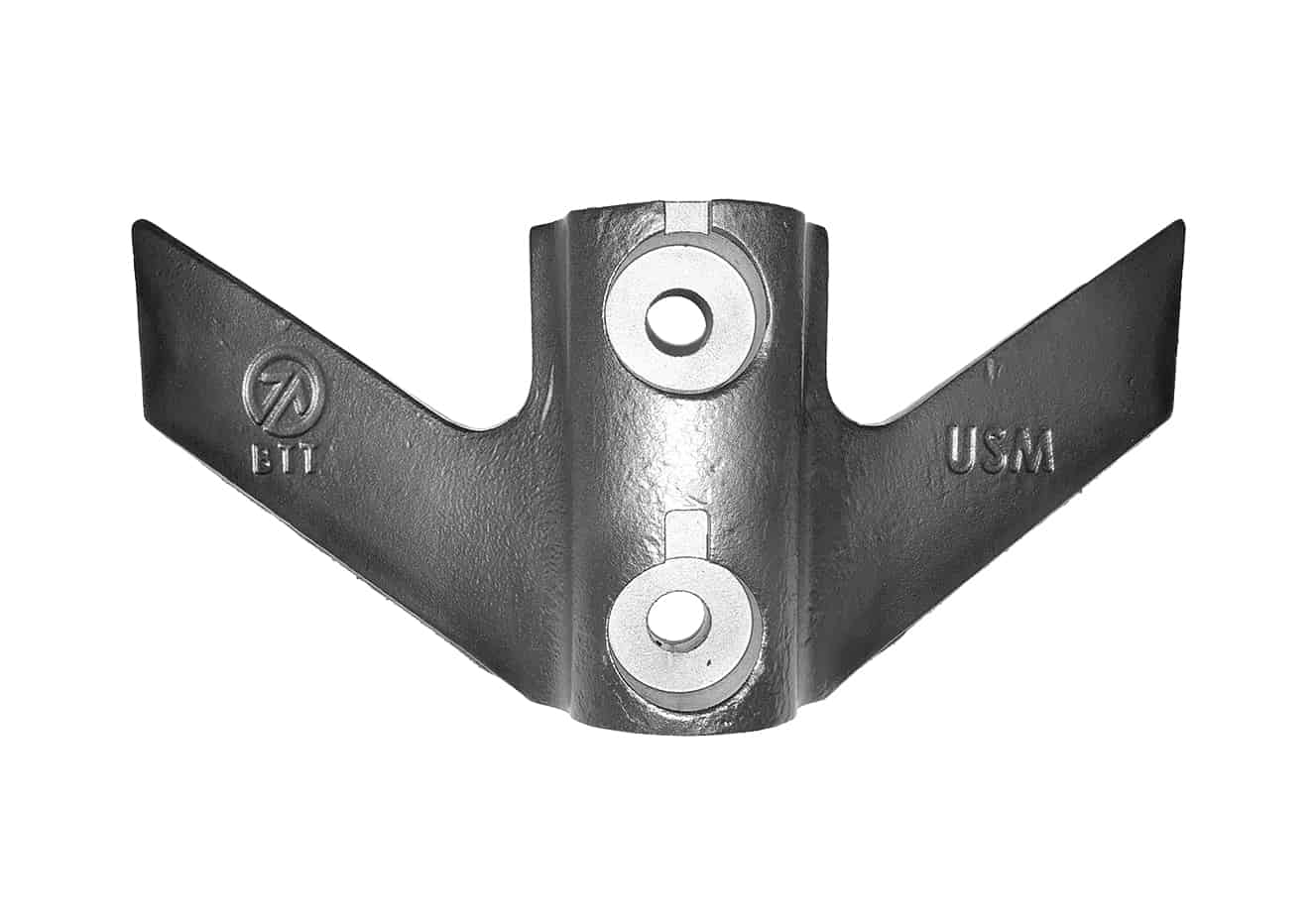

Deep Rippers
672-WNG-2000

FITS: Brillion, CNH: 870 & 875, DMI, John Deere: 510, 512, 910, 912, 2720, 2730 & 3700, Krause: Dominator, Landoll & Wil-Rich

OVERVIEW: The main body of the Deep Ripper is cast chrome with MAX LIFE™ carbide embedded on the underside of the nose for extra-long wear life. The bolt holes are re-enforced by extra-heavy cast plate to ensure long lasting life.

The Deep Ripper is used to penetrate compacted soils and mechanically
break up the soil hard pan. Replaceable wings allow for quick and easy
change overs to different wing profiles without having to remove the
entire ripper from your machine.

672-WNG-2000

PROFILE: N/A

WIDTH: No wings, standard cap only

OVERVIEW: Heat applied, embedded carbide has been added to the leading edge of the wings for extra-long wear life. Wings are available in two widths, with two different profiles allowing you to choose the right wing for your conditions. The polyurethane caps fit snugly over of the bolts to protect the bolts during the ripping process.

010-HAR-6250ML

PROFILE: Standard

WIDTH: 7″ (178 mm)

OVERVIEW: Heat applied, embedded carbide has been added to the leading edge of the wings for extra-long wear life. Wings are available in two widths, with two different profiles allowing you to choose the right wing for your conditions. The polyurethane caps fit snugly over of the bolts to protect the bolts during the ripping process.

010-HAR-6250ML

PROFILE: Flat Profile for Low Draft

WIDTH: 12″ (305 mm)

OVERVIEW: Heat applied, embedded carbide has been added to the leading edge of the wings for extra-long wear life. Wings are available in two widths, with two different profiles allowing you to choose the right wing for your conditions. The polyurethane caps fit snugly over of the bolts to protect the bolts during the ripping process.

MAX LIFE™ HARROW TINES

Available soon! Tines to fit CNH, John Deere & Morris.

010-HAR-3817ML

FITS:
Bourgault (OEM #2070-27)

The tine is 3/8″ (9.5 mm) diameter, 8″ (203 mm) wide and 17″ (432 mm) high. Heat applied, embedded carbide has been added to the tip of the tine.

010-HAR-5000ML

FITS:
Salford (OEM #R60000)

The tine is 1/2″ (12 mm) diameter, 10″ (254 mm) wide and 20″ (508 mm) high. Heat applied, embedded carbide has been added to the tip of the tine.

010-HAR-5022ML

FITS:
Elmer’s (OEM #21370, 12137000)

The tine is 1/2″ (12 mm) diameter, 10″ (254 mm) wide and 22″ (559 mm) high. Heat applied, embedded carbide has been added to the tip of the tine.

010-HAR-5625ML

FITS:
Bourgault (OEM #2070-28)
Brandt (OEM #B021750)
Degelman (OEM #143112)
Flexi-Coil (OEM #90081C, 87445314)
Gates (OEM #120240, 120241)
Rite Way (OEM #404-0010, 404-0028)
Summers/Herman (OEM #8H1190S)

The tine is 9/16″ (14 mm) diameter, 12″ (305 mm) wide and 26″ (660 mm) high. Heat applied, embedded carbide has been added to the tip of the tine.

010-HAR-6250ML

FITS:
Bourgault (OEM #2070-70, 8606-13)
Brandt (OEM #B021751, C516584)
Degelman (OEM #143113)
Gates (OEM #120229, 120230)
Summers (OEM #8H1195S)

The tine is 5/8″ (15 mm) diameter, 12.5″ (318 mm) wide and 27″ (686 mm) high. Heat applied, embedded carbide has been added to the tip of the tine.

MAX-LIFE™ SPIKES
410-SPK-0200ML
FITS: 200 Series Speed-Loc™ (47° Shank)

The spike is 2” (50 mm) wide, 5/8” (15 mm) thick and 9” (230 mm) long.

Heat applied, embedded carbide has been added to the leading edge of this heavy-duty quick change spike. It has a hardened wear pad (52-56 HRC) for extra life.

This tool is ideal for primary tillage or banding fertilizer.

200-SPK-0200ML
FITS: 200 Series Speed-Loc™ (47° Shank)

The spike is 5/8” (15 mm) thick, 2-1/4” (57 mm) wide and 6” (150 mm) long.

Heat applied, embedded carbide has been added to the nose of this quick change spike. It has a hardened wear pad (52-56 HRC) for extra life.

This tool is ideal for primary tillage or banding fertilizer.

MAX-LIFE™ SWEEPS
200-PWV-0405ML
FITS: 200 Series Speed-Loc™ (47° Shank)

The sweep is 1/4” (6 mm) thick and 4” (100 mm) wide.

Heat applied, embedded carbide has been added to the underside of this sweep. It is designed mainly for fall tillage or deep working. It has a hardened wear pad (52-56 HRC) which increases the life expectancy.

The nose on this sweep runs 1/2” (12 mm) lower than the other 200 Series sweeps. This increased pitch improves penetration in hard or compacted ground.

410-PWV-0418ML
FITS: 410 Series Speed-Loc™

The sweep is 5/16” (8 mm) thick and 4” (100 mm) wide.

Heat applied, embedded carbide has been added to the underside of this sweep. The sweep has a 3/8” hardened wear pad (52-56 HRC) for longer life. This sweep runs at a 13° pitch, which is steeper than the regular 410 sweep.
