1: CHOOSE YOUR TIP

610-TIP-0802

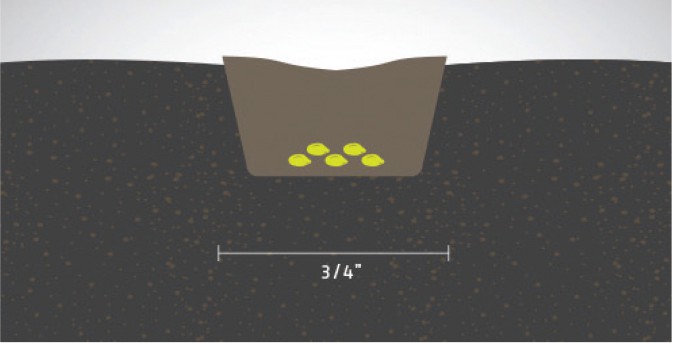

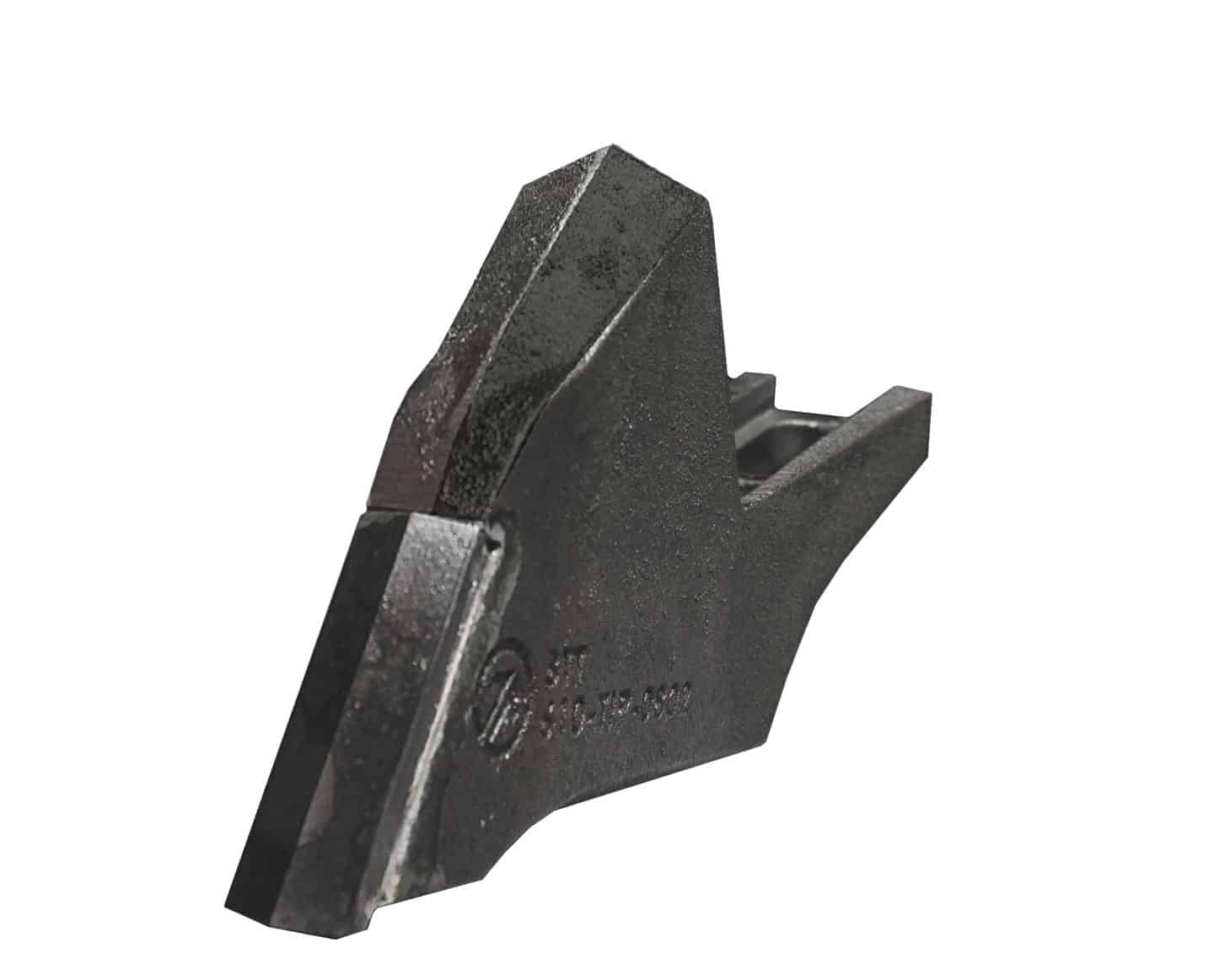

Single Shoot Tip

Overview: 3/4” (19 mm) long-wearing single shoot tip with long carbide insert on the nose for highly abrasive conditions.

Packer Recommendation: 3/4” (19 mm) or wider.

Fertilizer Options: Used for seeding only.

610-TIP-1711 / 1712

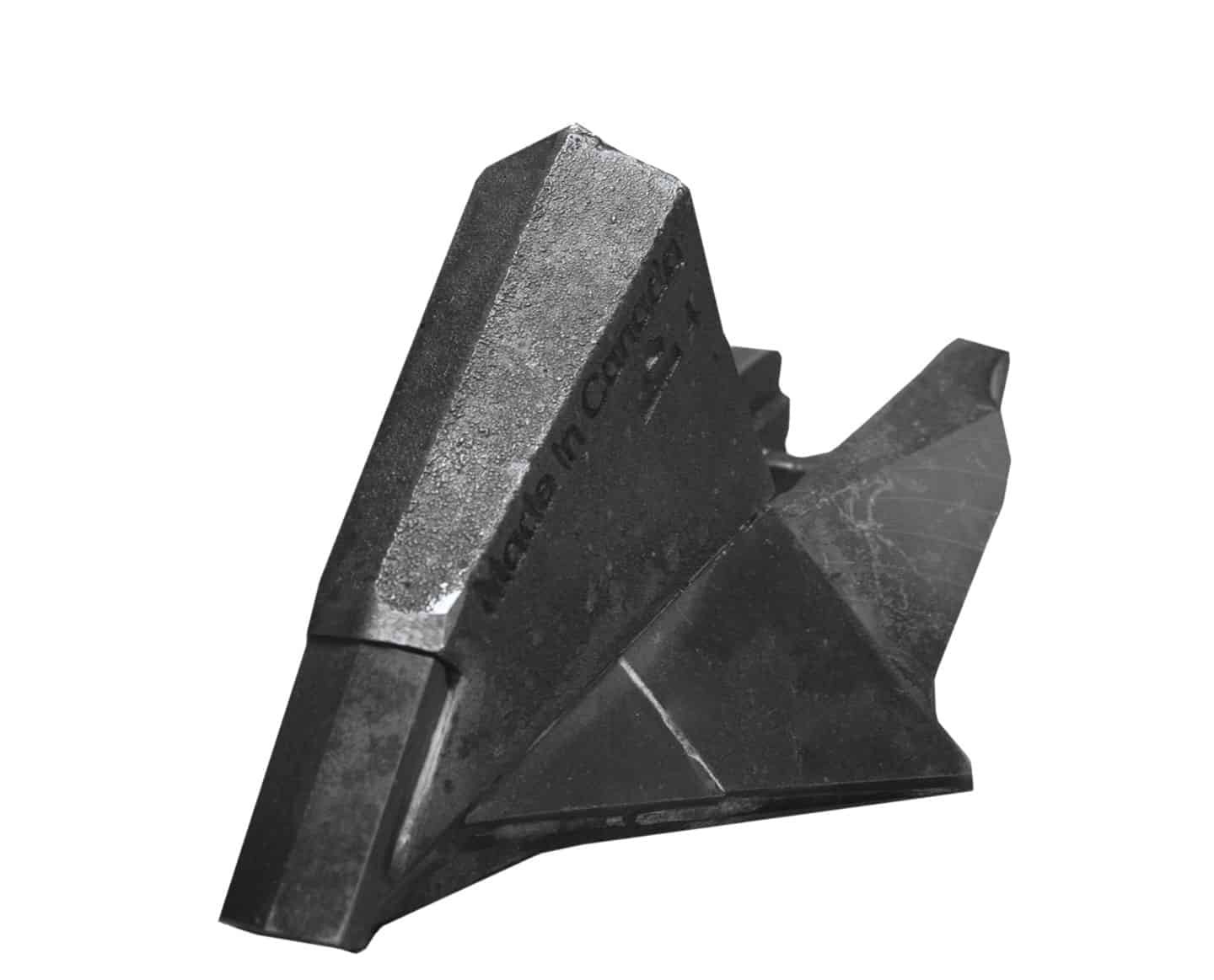

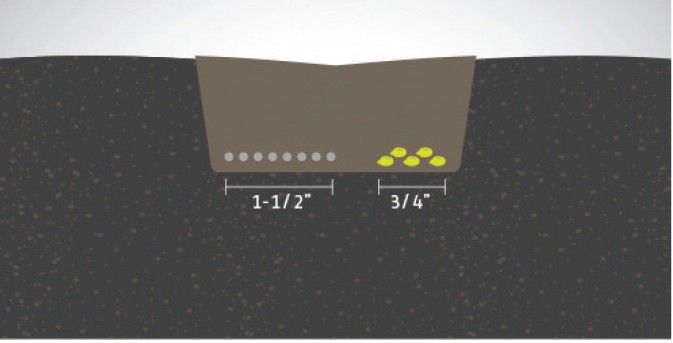

Side Band Tip

Overview: The seed is placed in a 3/4” (19 mm) band onto a firm, unfractured seedbed. Fertilizer is delivered in a band off to the side (right or left) on the same level as the seedbed.

Packer Recommendation: 2-1/4” (57 mm) or wider.

Fertilizer Options: Granular or Liquid

610-TIP-3500

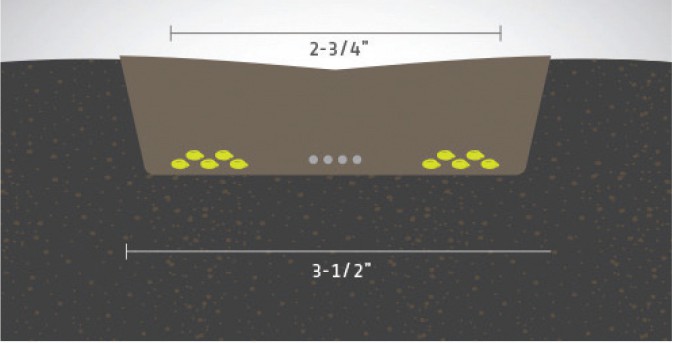

Paired Row Tip

Overview: 3-1/2” (89 mm) Paired Row liquid double shoot tip with 3/4” horizontal and no vertical seed/ fertilizer separation.

Packer Recommendation: 3-1/2” (89 mm) or wider.

Fertilizer Options:  Liquid

610-TIP-4030

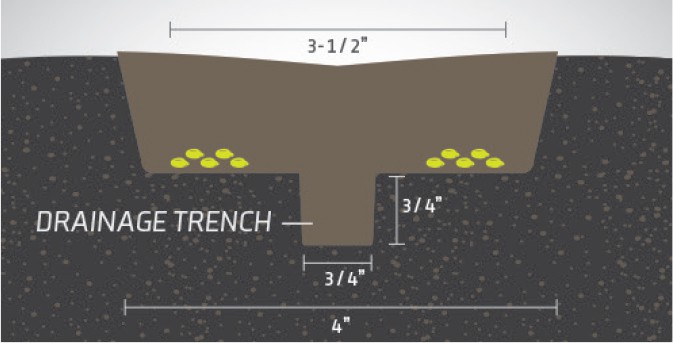

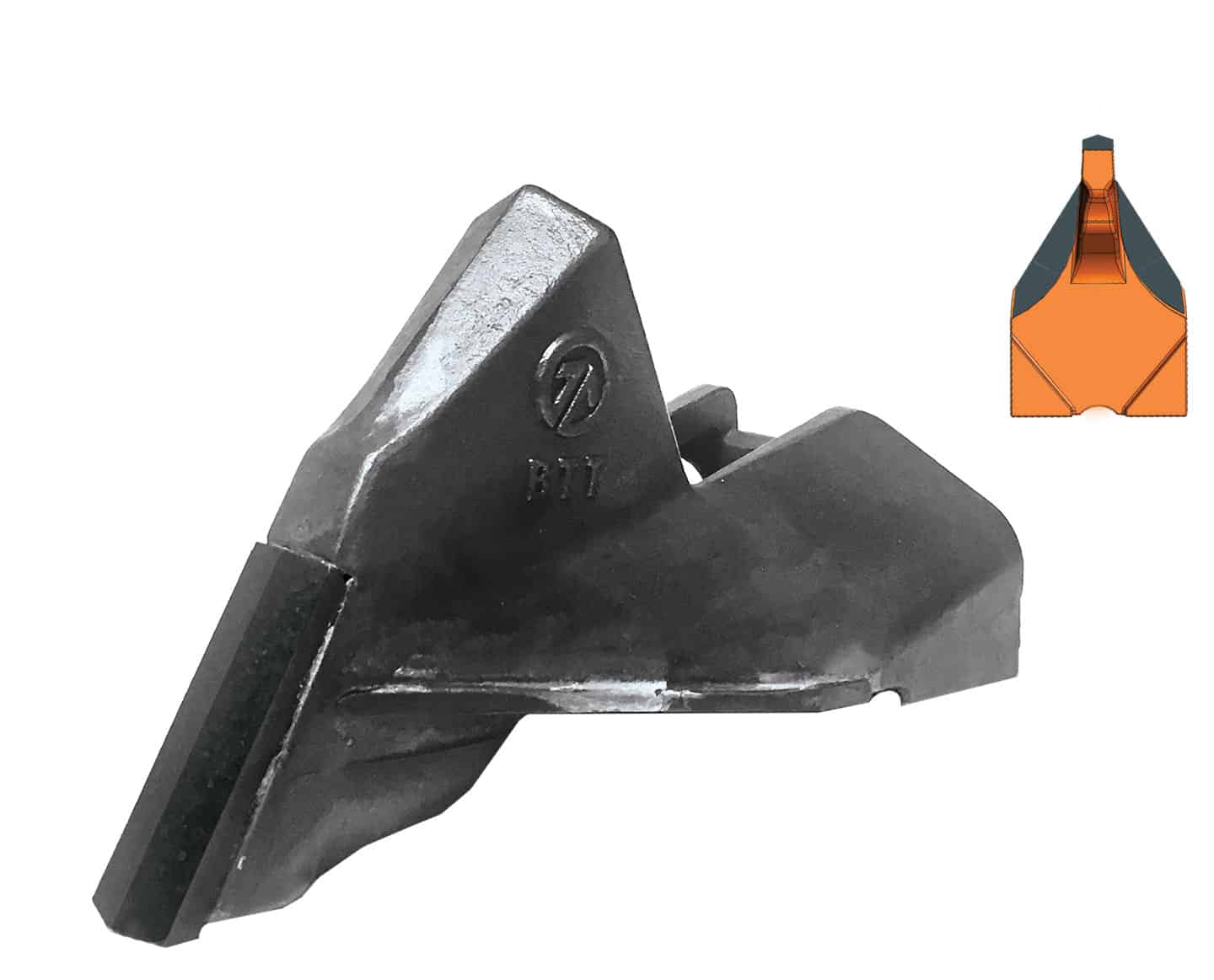

Paired Row Tip

Overview: 4” (102 mm) Paired Row tip with extra long nose carbide and narrow carbide on the cutting edges of the wings. Two carbide inserts under the wings firm up the trench prior to seed placement.

Packer Recommendation: 4” (102 mm) or wider.

Fertilizer Options:  Used for seeding only.

610-TIP-4081

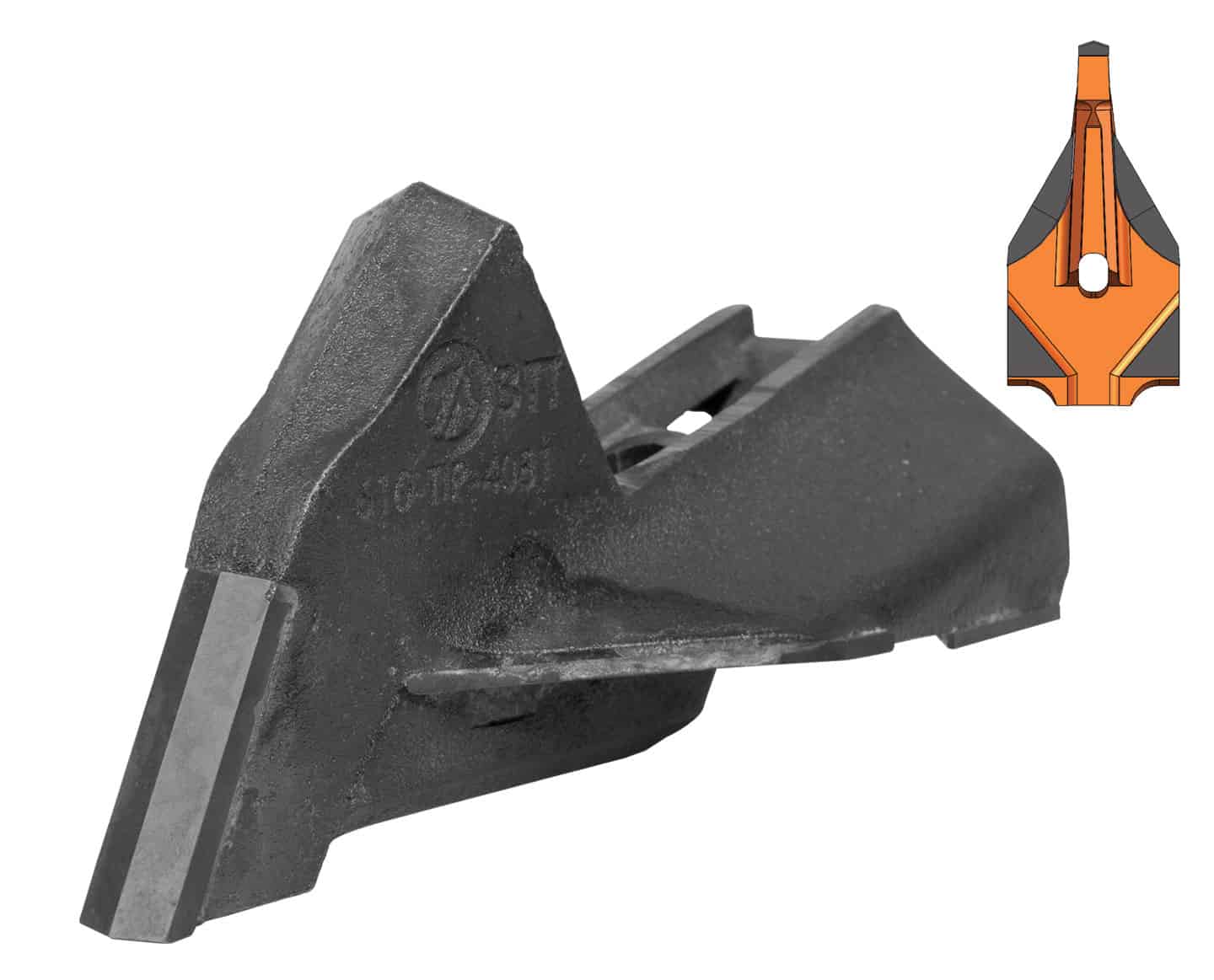

Paired Row Tip

Overview: 4” (102 mm) Paired Row tip with horizontal and 3/4” (19 mm) vertical seed/fertilizer separation. Extra long nose carbide, narrow carbide on the cutting edges of the wings and under the wing to seal the fertilizer trench, and firm up the seed bed prior to seed placement.

Packer Recommendation: 4” (102 mm) or wider.

Fertilizer Options:  Granular, Liquid, NH3, Pressurized NH3 and NH3 + Phosphorus

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

2: CHOOSE YOUR HOLDER

Notes:

* When installing on a 50° shank other than Bourgault or Ezee-On use wedge 880-WDG-0300 or 880-WSG-0301.

** Recommended for use with 3/4” single shoot tip 610-TIP-0802.

*** Use bottom holes when mounting for use with 0802, 1711, 1712 & 3500 tips. To make this opener 3/4″ deeper use top holes when installing the holder. See page 126-127 for more information.

**** Not recommended for use with Paired Row Tip 610-Tip-4081.

***** Use the bottom two holes when installing this holder for standard installation. To add 3° more pitch, use the top two holes on the holder.

3: CHOOSE YOUR FERTILIZER

880-TUB-1001

Precision Drills NH3

1/2” O.D. Stainless Tube

For pressurized NH3 order this tube and consult with your pressurized system dealer for tubing inserts.

880-TUB-1002

C-Shank Drills NH3

1/2” O.D. Stainless Tube

For pressurized NH3 order this tube and consult with your pressurized system dealer for tubing inserts.

880-TUB-1003

Precision Drills Liquid

1/4” O.D. Stainless Tube

880-TUB-1004

C-Shank Drills Liquid

1/4” O.D. Stainless Tube

880-TUB-1009

Precision Drills Liquid or NH3

3/8” O.D. Stainless Tube

880-TUB-1010

C-Shank Drills Liquid or NH3

3/8” O.D. Stainless Tube

880-TUB-1011

Precision Drills Aqua NH3 + Phos

1/4” O.D. Stainless Tube

880-TUB-1012

C-Shank Drills Aqua NH3 + Phos

1/4” O.D. Stainless Tube

For a more detailed view check out the expanded drawing
