TITAN FEATURES:

• The Titan series provides the most vertical separation between seed and fertilizer.

• 1/2” wide fertilizer knife for lower disturbance and more precise fertilizer placement.

• By adjusting the seed boot you are able to set the depth of the fertilizer from 3/4” to 1-1/2”.

• Three strategic carbide locations for additional wear life. Hard facing is placed on key wear points that don’t have carbide.

• The modular design allows for replacement of worn parts instead of the entire opener.

• Adjustable depth based on seed and fertilizer placement needs.

TITAN SERIES CUSTOMIZER

Use the below customizer to see the different options for the Titan Series. Individual component breakdowns can be found below.

Choose Your Holder none ...
Choose Your Tip none ...
Choose Your Seed Shoe none ...
Choose Your Fertilizer none ...
Total:

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

1. Choose your Holder

620-HLD-5000

Fits 47° and 50° C-Shanks

628-HLD-5000

Fits Morris Maxim Edge On

Bourgault PHD Shanks

688-HLD-5000

Fits Horsch 84° Shank

694-HLD-5000*

Fits Case IH ATX 700,

New Holland P2060,

Flexi-Coil PH5500,

Concord Edge On

(84° Shanks Only)

NOTES:

* When installing on units other than Concord, the insert 694-ACC-1000 is needed.

2. Choose your Seed Shoe

620-SSH-1000**

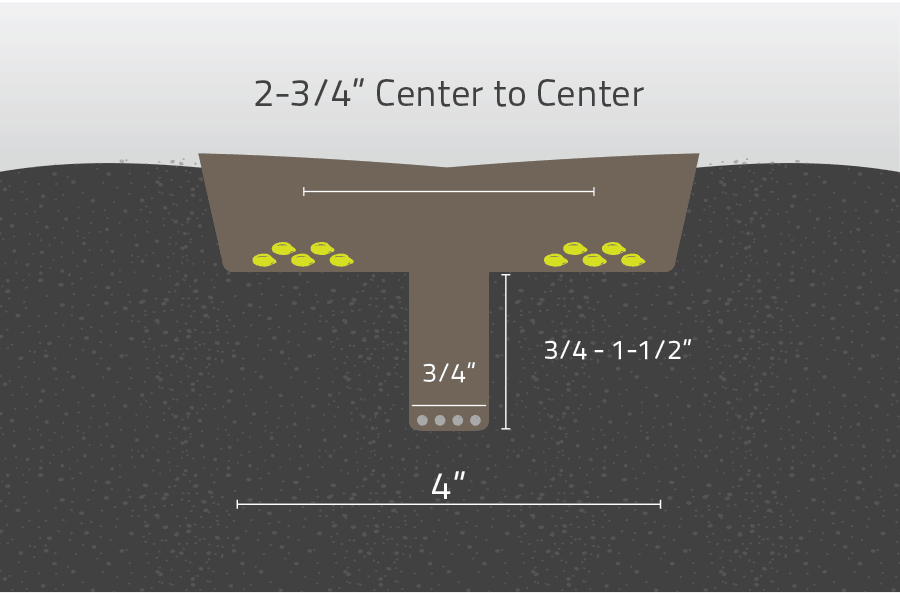

4” outside to outside (2-3/4” center to center) seed spread, placed above the center placed fertilizer trench.

620-SSH-4000**

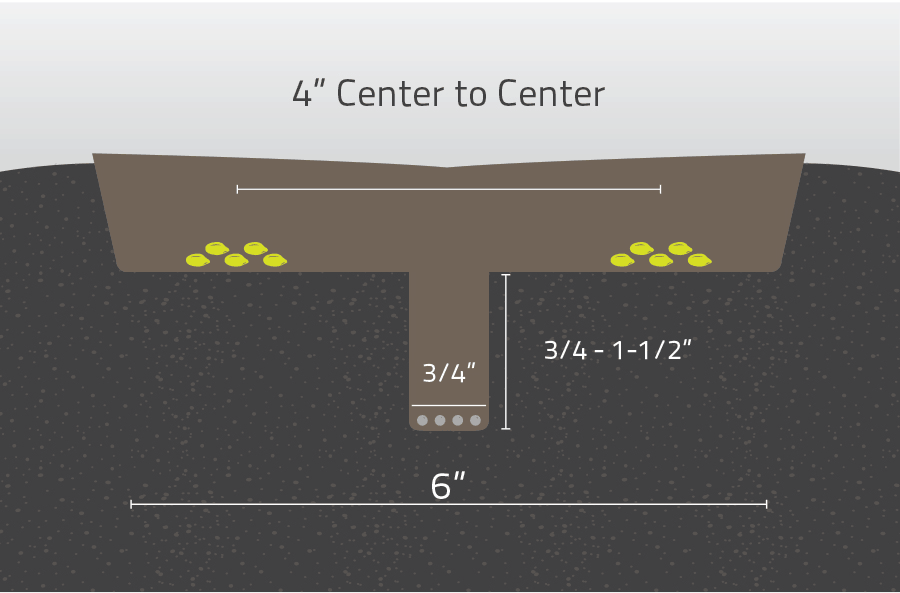

6” outside to outside (4” center to center) seed spread, placed above the center placed fertilizer trench.

620-SSH-6000**

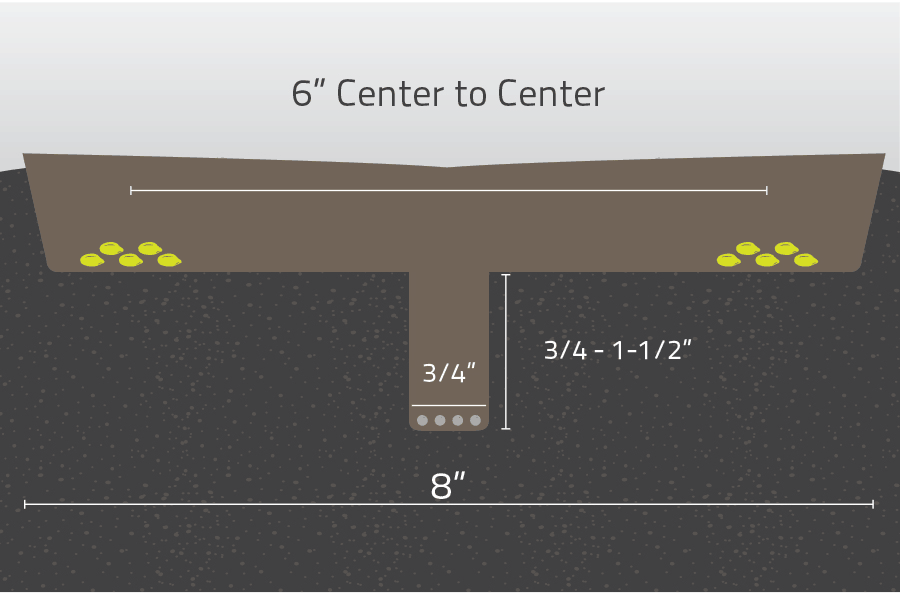

8” outside to outside (6” center to center) seed spread, placed above the center placed fertilizer trench.

628-SBT-2000

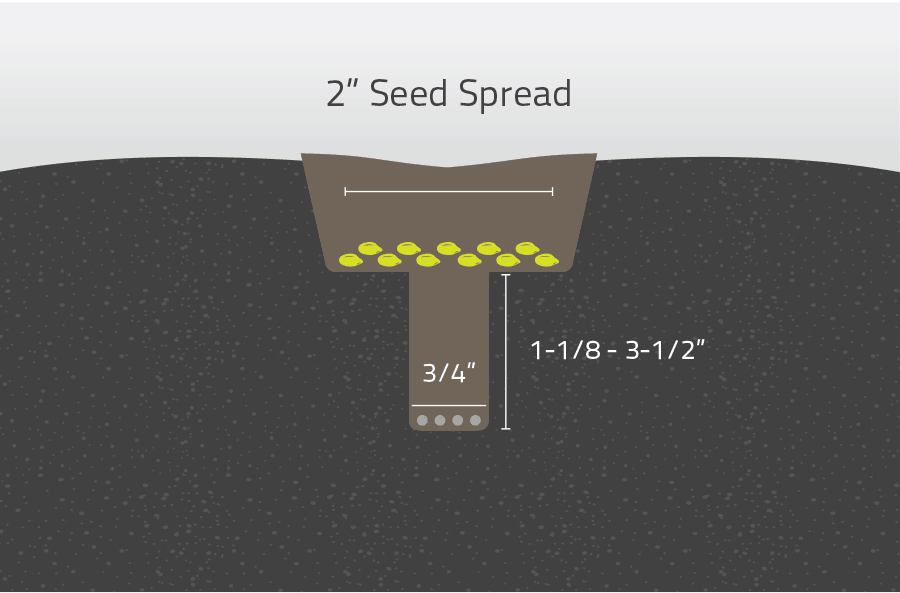

2” wide seed spread, placed above the center placed fertilizer trench.

NOTES:

**When using Seed Shoes with 620-TIP-0517, you must use the bottom setting on the holder. Fertilizer is placed at 1-1/2″ at this setting.

3. Choose your Tip

620-TIP-0510

Standard tip for 620, 688 & 694 holders. Carbide inserts are placed on the nose. Hard facing is placed on critical wear points for extended life of the tip.

620-TIP-0517**

This tip is the same as 620-TIP-0510 but is 3/4″ longer giving you more vertical separation.

628-TIP-0510

Only fits the 628 holder. Carbide inserts are placed on the nose. Hard facing is placed on critical wear points for extended life of the tip.

628-TIP-0512

Only fits the 628 holder. This tip has extra long nose carbide inserts and is 1″ longer than 628-TIP-0510.

NOTES:

**When using Seed Shoes with 620-TIP-0517, you must use the bottom setting on the holder. Fertilizer is placed at 1-1/2″ at this setting.

4. Choose your Fertilizer

NH3

620-TUB-1021

NH3 tube for 620, 688 & 694 holders.

For pressurized NH3 order this tube and consult your pressurized system dealer for tubing inserts.

NH3 + LIQ PHOS

620-TUB-1070 & 1070XL

Aqua NH3 + Phos tube for 620, 688 & 694 series holders.

620-TUB-1070XL is the same but longer, and needed when using 620-TIP-0517.

LIQUID + NH3

620-TUB-4000 & 4000XL

Liquid or NH3 tube for 620, 688 & 694 series holders. 0.4″ O.D. Stainless Steel Tube.

620-TUB-4000XL is the same but longer, and needed when using 620-TIP-0517.

NH3

628-TUB-1021

NH3 tube for 628 holders.

For pressurized NH3 order this tube and consult your pressurized system dealer for tubing inserts.

For a more detailed view and previous assembly part number breakdowns check out the expanded drawing
