200 Series

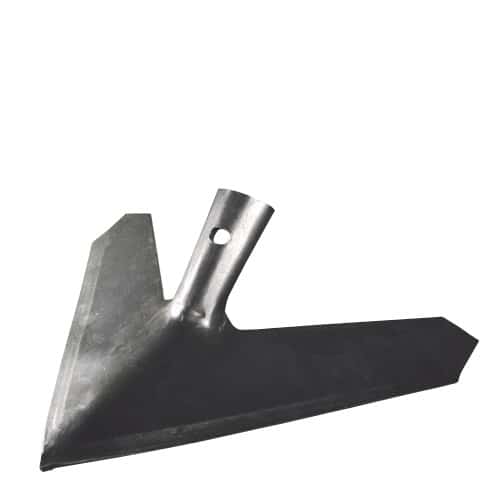

200 Series Sweeps

Fits 200 Series Speed-Loc™

Our sweeps boast long-lasting designs, precise heat treatments, consistent quality, and innovative Speed-Loc™ technology.

Read More…

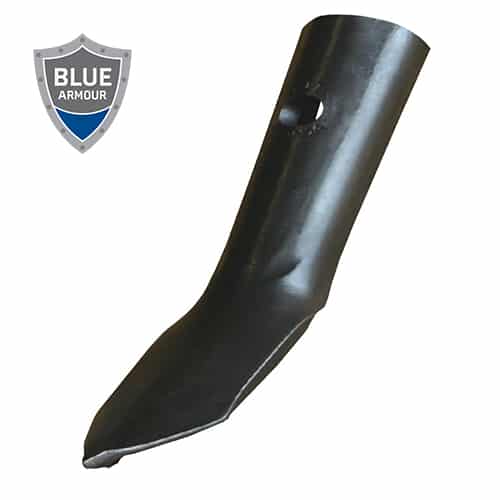

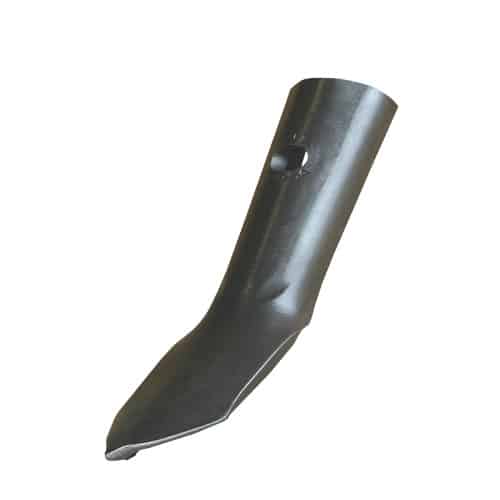

200-GFO-0308

47° Shank

This “Goosefoot” tillage tool is 5/16” (8 mm) thick and 2-1/2” (63 mm) wide. It is designed specifically for vibrating S-tine cultivators.

Read More…

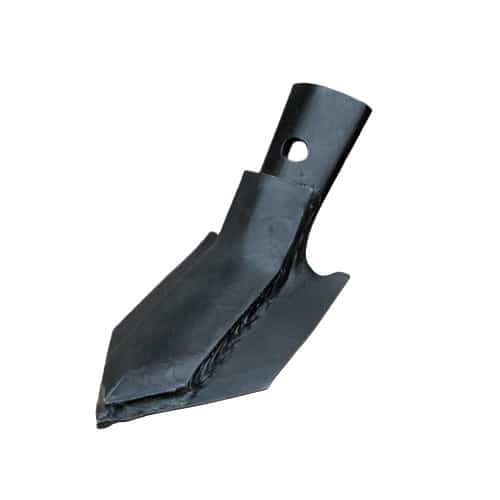

200-PWV-0405

47° Shank

This sweep is designed mainly for fall tillage or deep working. It has a hardened wear pad which increases the life expectancy. The nose on this sweep runs 1/2″ (12 mm) lower than the other 200 Series sweeps. This increased pitch improves penetration in hard or compacted ground.

Read More…

200-PWV-0405ML

47° Shank

Heat applied, embedded carbide has been added to the underside of this sweep. The sweep is 1/4” (6 mm) thick and 4” (100 mm) wide. It is designed mainly for fall tillage or deep working. It has a hardened wear pad (52-56 HRC) which increases the life expectancy. The nose on this sweep runs 1/2” (12 mm) lower than the other 200 Series sweeps. This increased pitch improves penetration in hard or compacted ground.

Read More…

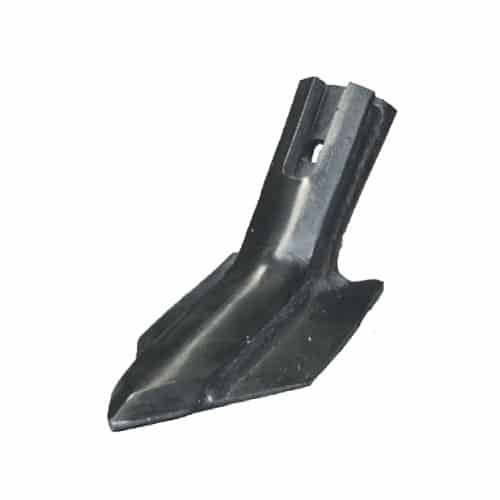

200-PWV-0428

47° Shank

This sweep is designed mainly for fall tillage or deep working. It has a hardened wear pad (52-56 HRC) which increases its life expectancy.

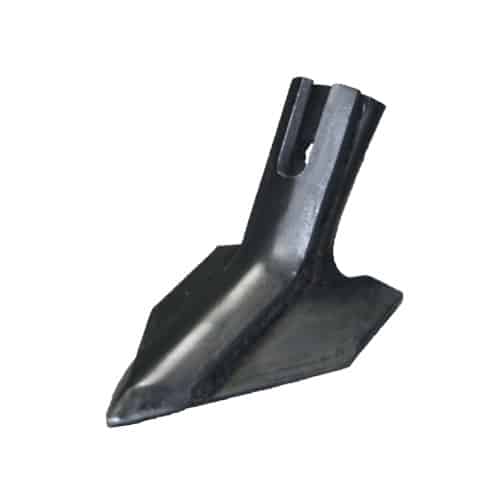

200-PWV-0528

50° Shank

This sweep is designed mainly for fall tillage or deep working. It has a hardened wear pad (52-56 HRC) which increases its life expectancy.

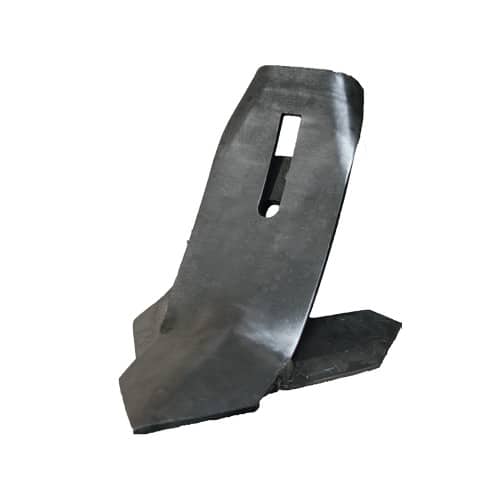

200-PWV-0738

50° Shank

This sweep is 5/16″ thick and 4″ wide with a 4″ wide extended wear pad.

Read More…

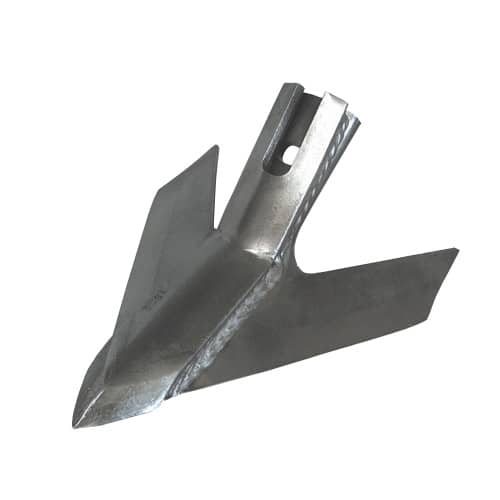

200-PWV-0928

50° Shank

This sweep boasts a wear pad that extends up the entire stem.

Read More…

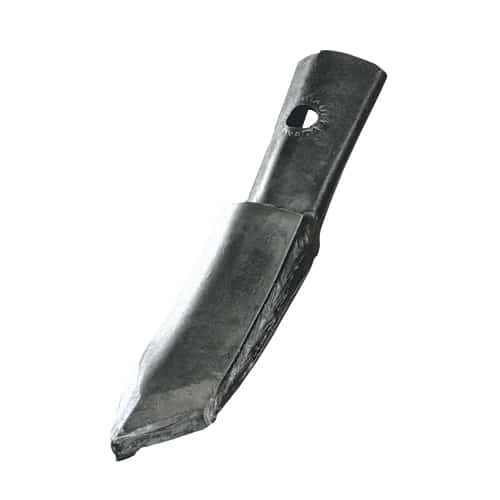

200-SPK-0200

47° Shank

This quick change spike has a hardened wear pad for extra life. This tool
is ideal for primary tillage or banding fertilizer.

200-SPK-0200ML

47° Shank

Heat applied, embedded carbide has been added to the nose of this quick change spike. The spike is 5/8” (15 mm) thick, 2-1/4” (57 mm) wide and 6” (150 mm) long. It has a hardened wear pad (52-56 HRC) for extra life. This tool is ideal for primary tillage or banding fertilizer.

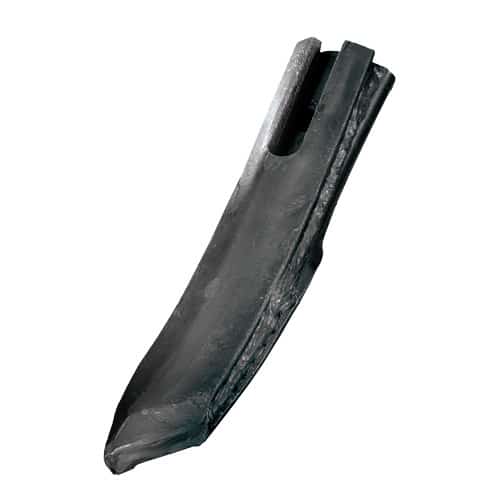

200-SPK-0215

50° Shank

This quick change spike is has a hardened wear pad that extends to the top of the stem to prevent wear in abrasive soil or when working at greater depths.

200-SPK-0230

50° Shank

This quick has a hardened wear pad for extra life. This tool is made specifically for slurry injection.

Read More…

410 Series

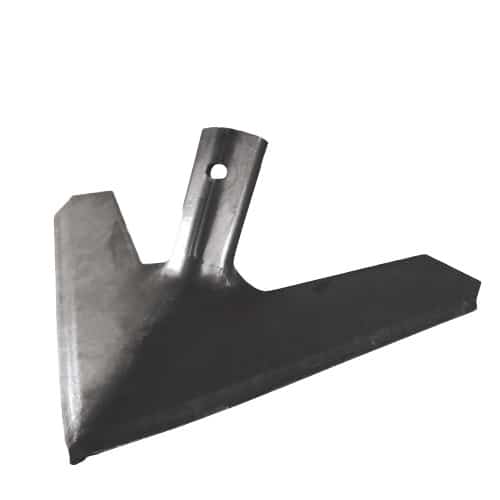

410 Series Sweeps

Fits 410 Series Speed-Loc™

Our sweeps boast long-lasting designs, precise heat treatments, consistent quality, and innovative Speed-Loc™ technology.

Read More…

410-PWV-0418

Sweep w/ Hardened Wear Pad

These sweeps have a 3/8″ hardened wear pad for a longer life span. It runs at a 13° pitch, which is steeper than the regular 410 sweep, this results in more disturbance.

Read More…

410-PWV-0418ML

Sweep w/ Hardened Wear Pad

Heat applied, embedded carbide has been added to the underside of this sweep. The sweep has a 3/8” hardened wear pad (52-56 HRC) for longer life. The sweep is 5/16” (8 mm) thick and 4” (100 mm) wide. This sweep runs at a 13° pitch, which is steeper than the regular 410 sweep.

Read More…

410-PWV-0518

Sweep w/ Hardened Wear Pad

This sweep runs at a 3° pitch, which is the same as a standard sweep.

410-SPK-0200

Spike

This spike has a hardened wear pad for a longer life. It works well for primary tillage or for banding fertilizer.

410-SPK-0200ML

Spike

Heat applied, embedded carbide has been added to the leading edge of this heavy-duty quick change spike. The spike is 2” (50 mm) wide, 5/8” (15 mm) thick and 9” (230 mm) long. It has a hardened wear pad (52-56 HRC) for extra life. This tool is ideal for primary tillage or banding fertilizer.

Bolt-On Series

Bolt-On Sweeps

Fits all Makes and Models

Our sweeps boast long-lasting designs, precise heat treatments, consistent quality, designed to fit any make and model of tillage equipment.

Read More…

070-RSP-0200A

Reversible Spike

Shorter than our other two reversible spikes, it is designed for light to medium-duty field cultivators or for chisel plows where ground clearance in transport is a concern.

Read More…

070-RSP-0210A

Reversible Spike

Flat through the bolt hole section, this reversible spike is designed specifically to fit the Bourgault chisel plow as well as the Morris LH 755 shank.

070-RSP-0220A

Reversible Spike

This spike is curved at the bolt hole section, it can be used on any chisel plow shank except the Bourgault and Morris LH 755 shank.

070-RCH-0451

Reversible Chisel

This reversible chisel is used for primary tillage in the fall or early spring.

Read More…

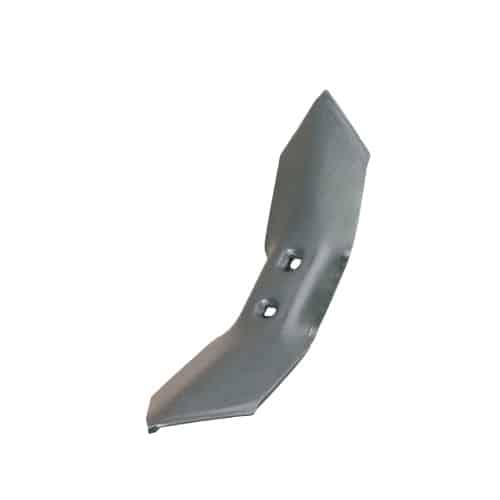

070-RCH-0452

Reversible Chisel

This chisel is used for primary tillage in the fall and early spring.

Read More…
