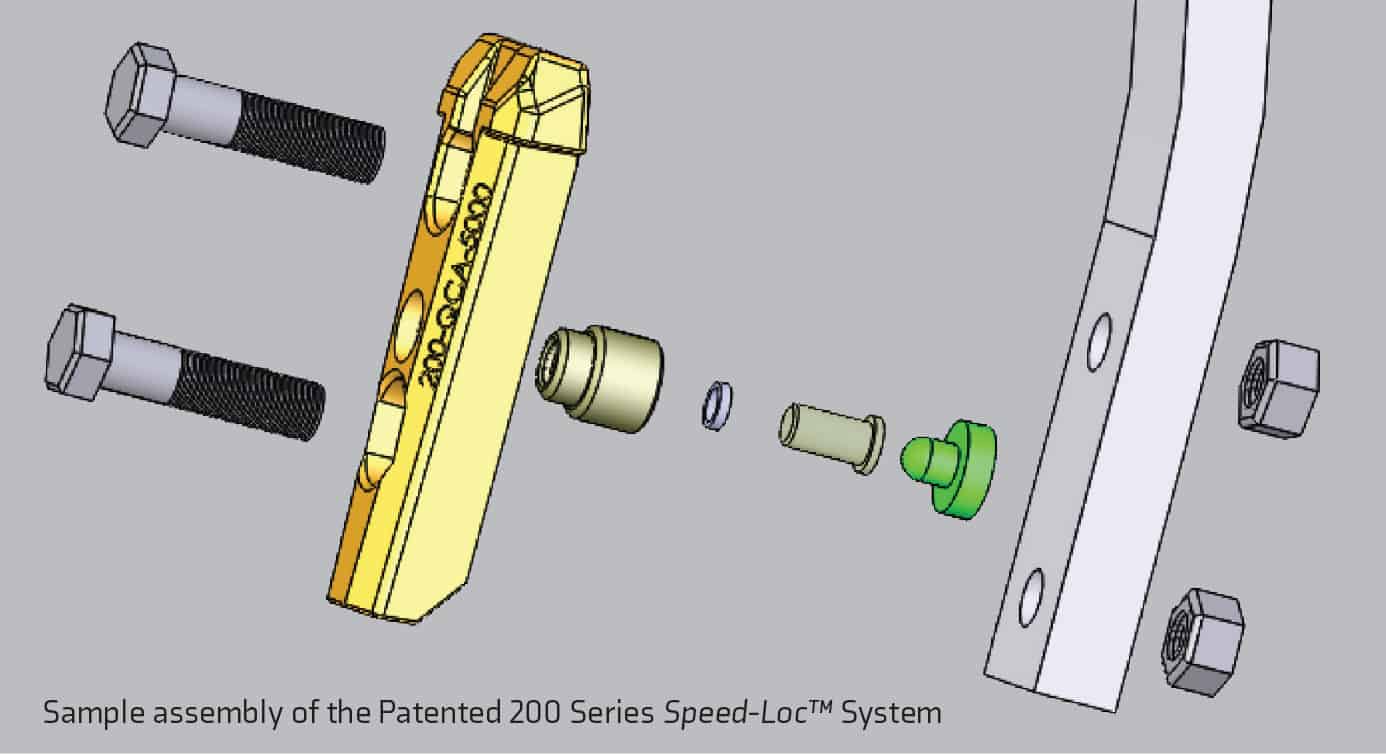

200 Series Speed-Loc™ Adapters

200-QCA-4700

47° Shank

• Fits all Bourgault and Ezee‑On field cultivators, air seeders and air drills.
• 1-3/4” (45 mm) center to center.
• 1/2” (12 mm) hex head bolts.

200-QCA-4710

47° Shank

• Fits field cultivators with 47° shanks, except Bourgault and Ezee-On.
• 1-3/4” (45 mm) center to center.
• Oversize head plow bolts.

200-QCA-5000

50° Shank

• Fits all Bourgault and Ezee‑On field cultivators, air seeders and air drills.
• 2-1/4” (57 mm) center to center.
• 1/2” (12 mm) hex head bolts.

200-QCA-5010

50° Shank

• Fits air drills with 50° shanks.
• Not recommended for heavy deep tillage.
• 2-1/4” (57 mm) center to center.
• 1/2” (12 mm) plow bolts.
• Can also be used on a 43° shank with the addition of a 7° wedge (100-WDG‑0700).

200-QCA-5020

European Shank

• Fits European built tillage and seeding implements.
• 63 mm to 80 mm center to center.
• M12-DIN608 10.9 plow bolts.

200-QCA-5030

Horsch Shank

• Fits Horsch shanks.
• 57 mm center to center.
• M12-DIN608 10.9 plow bolts.

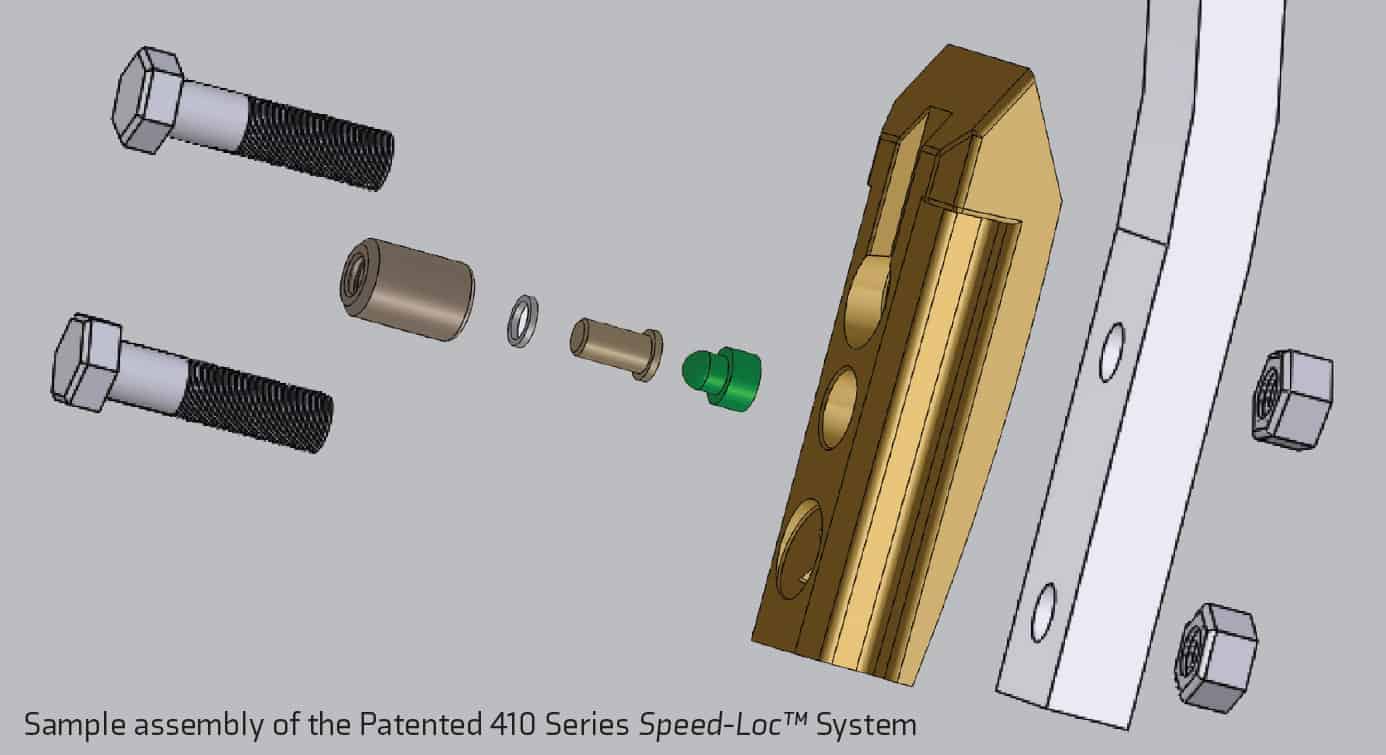

410 Series Speed-Loc™ Adapters

410-QCA-5000

50° Shank

• Fits Bourgault and Morris
Magnum chisel plows, and
Morris Concept 2000 with the
LH755 shank.
• 2-1/4” (57 mm) center to center.
• 1/2” (12 mm) hex head bolts.

On a Bourgault four-hole shank, the center hole of the adapter should be plugged to protect the spring ball from NH3 gases when used as a NH3 applicator.

410-QCA-5010

50° Shank

• Fits all 50° chisel plows except the Bourgault and Morris units identified for use with the 410‑QCA‑5000.
• 1-3/4” to 3” (45 mm to 77 mm) center to center.
• 1/2” (12 mm) hex head bolts.

In rocky or abrasive conditions, the bottom nut may experience excessive wear or damage. This problem is alleviated by placing the bottom bolt in from the back of the shank and putting the nut in the front of the  adapter.

This adapter can be used on a 43° shank by adding a 7° plastic wedge (400‑WDG-0700).

Special note for John Deere: certain chisel plow models including the 685, 1810, 1820 and 2400 may need a 3° wedge to attain proper sweep pitch.
Shanks with the open bottom bolt hole require the 047-ACC-1002 to keep the bottom bolt in place.

410-QCA-5020

Lemken Shank

• Fits Lemken shanks.
• 45 mm center to center.
• M12-DIN608 10.9 plow bolts.

410-QCA-5050

Kverneland Shank

• Fits Kverneland (CLD Grubber) shanks.
• 45 mm center to center.
• M12-DIN608 10.9 plow bolts.

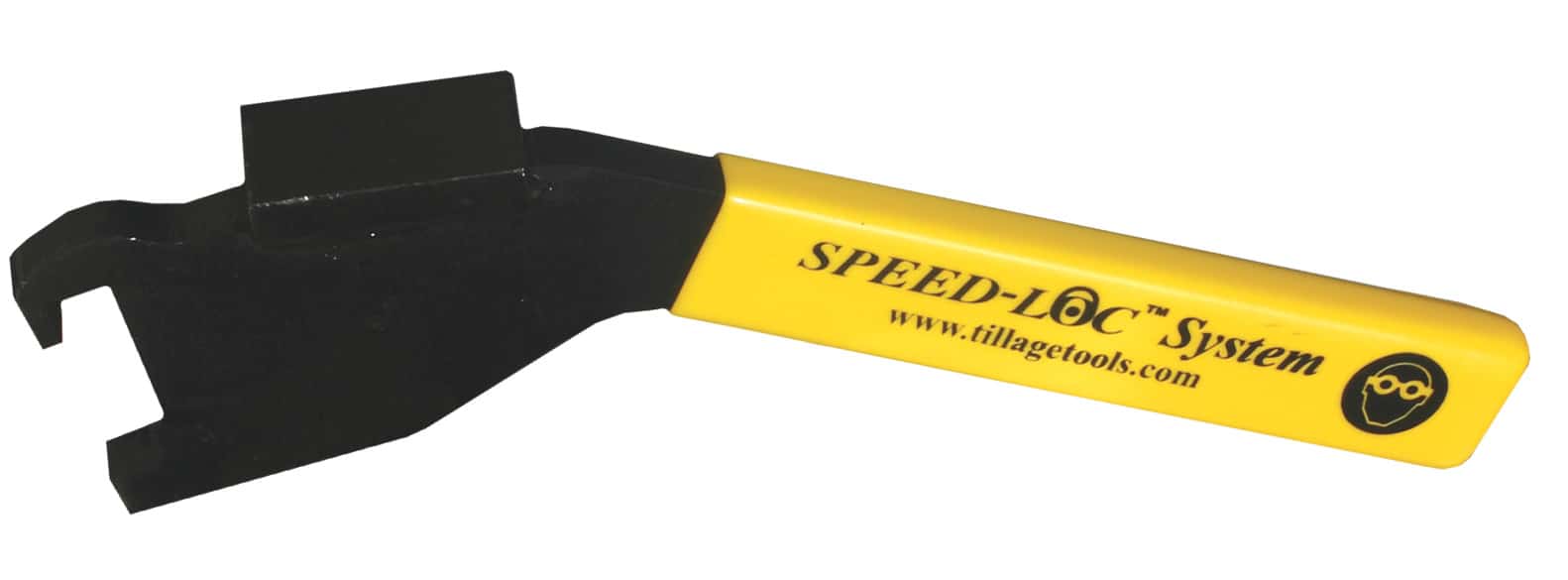

200-REL-1010

Don't forget the Speed Release Tool

The speed-release tool must be used to remove 200 and 410 Series sweeps and openers off the Speed-Loc™ adapters.

Not sure which adapter is for you or which bolts you need?

Refer to our Speed-Loc™ adapter chart.

View a complete list of bolt lengths.

Speed-Loc™ Replacement Parts
200-SLC-1001

Replacement bushing for all 200 Series adapters as well as the 410-QCA-5050. Comes complete with dust seal.

200-SLC-1010

Replacement dust seal for all 200 and 410 Series Speed‑Loc™ adapters.

200-SLC-1020

Replacement locking pin for all 200 and 410* Series adapters.

*After Nov. 1/08

200-SLC-1030

Replacement spring ball for the 200-QCA-4700 adapters.

200-SLC-1035

Replacement spring ball for the 200-QCA-4710, 200-QCA-5000 and 200-QCA-5010 adapters.

200-SLC-1037

Replacement spring ball for the 200-QCA-5020 and 410-QCA-5050 adapters.

200-SLC-1038

Replacement spring ball for 200-QCA-5020 adapter for special applications.

200-SLC-1039

Replacement spring ball for 200-QCA-5030 adapters.

410-SLC-1001

Replacement bushing for the 410-QCA-5000, 410-QCA-5010 and 410-QCA-5020. Comes complete with dust seal.

410-SLC-1022*

Replacement locking pin for all the 410 Series adapters*.

*Go to 200-SLC-1020 if 410 Series adapter was purchased after Nov. 1/08.

410-SLC-1030

Replacement spring ball for the 410-QCA-5000, 410-QCA-5010 and 410-QCA-5020.

410-SLC-1050

Complete replacement package for the 410 Series Speed-Loc™ Adapter, includes spring ball, pin, bushing & dust seal.
