All of our replaceable tips are made in North America, giving you the superior wear resistance you have come to expect from us. They are cast by Leth Iron in Lethbridge, Canada using only the best materials available, so we can offer you the highest quality tips on the market. All carbide inserts used on our tips are North American made and attached in-house ensuring the highest standards of quality are met.

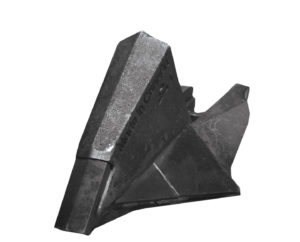

610-TIP-1711

610-TIP-1712

Side Band Tip

Cast chrome tip with carbide inserts on the nose and the wing for excellent penetration and wear resistance.

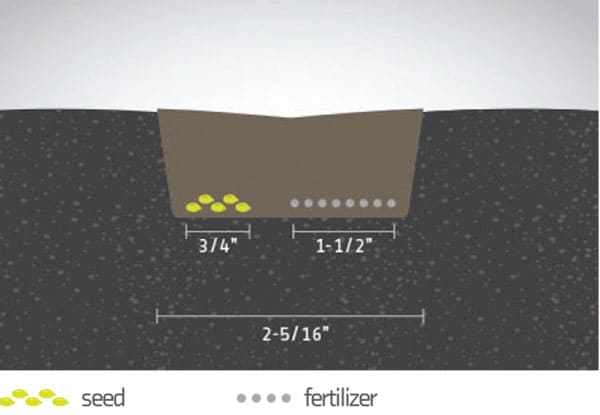

The seed is placed in a 3/4” (19 mm) band onto a firm, unfractured seedbed. Fertilizer is delivered in a band off to the side (right or left) on the same level as the seedbed. Fits VOS (Versatile Opener System). Learn more…

Also available as a single shoot opener to fit Seed Hawk Inc. Learn more…

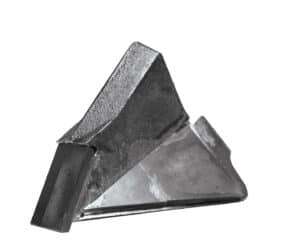

612-TIP-0711

612-TIP-0712

Side Band Tip

Cast chrome tip with carbide inserts on the nose and the wing for excellent penetration and wear resistance.

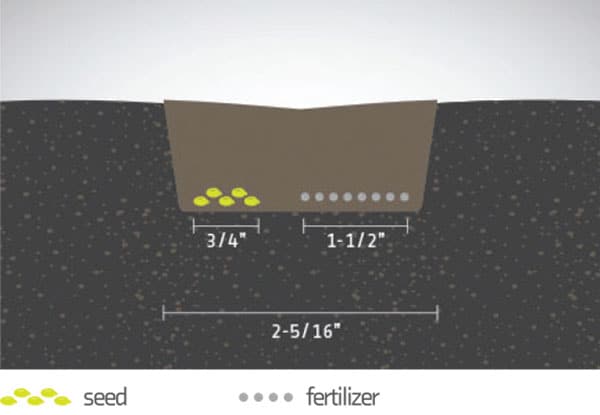

The seed is placed in a 3/4” (19 mm) band onto a firm, unfractured seedbed. Fertilizer is delivered in a band off to the side (right or left) on the same level as the seedbed.

Learn more…

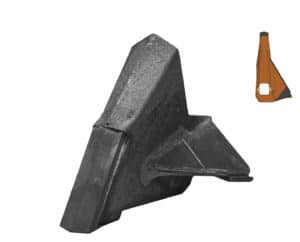

614-TIP-2711

614-TIP-2712

Side Band Tip

Cast chrome tip with carbide inserts on the nose and the wing for excellent penetration and wear resistance. A carbide wafer under the wing seals the fertilizer trench, and firms the seed bed prior to seed placement.

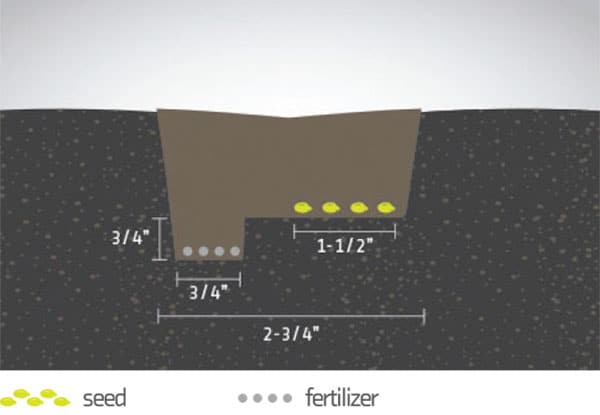

The seed is placed in a 1-1/2″ (38 mm) band 3/4″ (19 mm)above and to the side of the fertilizer row after the fertilizer trench has been sealed and seed bed has been firmed up.

Learn more…

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

200-BNC-3100

Bolt & Nut Combo

This bolt and nut combination is used to secure tips with product numbers beggining in 200, 610, 612 & 614. It is important not to over tighten the bolt when installing the tips. The bolt has a strip of thread lock applied to the threads, so it needs only to be turned in by hand until the shoulder of the bolt makes contact with the nut.

The nut, 200-NUT-3101, and bolt, 200-BLT-3102, can be ordered separately.

Over torquing with a power drill will result in difficulty when removing. Recommended to torque to 84 in/lbs or 7 ft/lbs.
