All of our replaceable tips are made in North America, giving you the superior wear resistance you have come to expect from us. They are cast by Leth Iron in Lethbridge, Canada using only the best materials available, so we can offer you the highest quality tips on the market. All carbide inserts used on our tips are North American made and attached in-house ensuring the highest standards of quality are met.

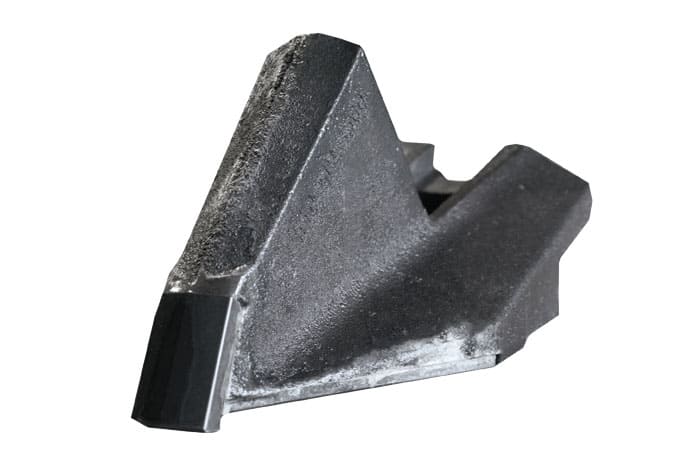

610-TIP-3500

Paired Row Tip

Cast chrome tip with carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside of the wing maintain a sharp cutting edge.

3-1/2” (89 mm) Single shoot Paired Row tip with no vertical separation used on Seed Hawk Inc. Learn more…

3-1/2” (89 mm) Paired Row liquid option only tip. This double shoot tip has no vertical seed/fertilizer separation. Fits VOS (Versatile Opener System). Learn more…

610-TIP-4030

Paired Row Tip

4″ (102 mm) Paired Row tip with extra long carbide on the nose and narrow carbide on the cutting edges of the wings for excellent penetration. Two carbide pieces on the bottom firm the trench for seed placement. Fits VOS (Versatile Opener System).

Learn more…



This tip also fits any holders that use the Paired Row tip 610-TIP-4041.

Learn more…

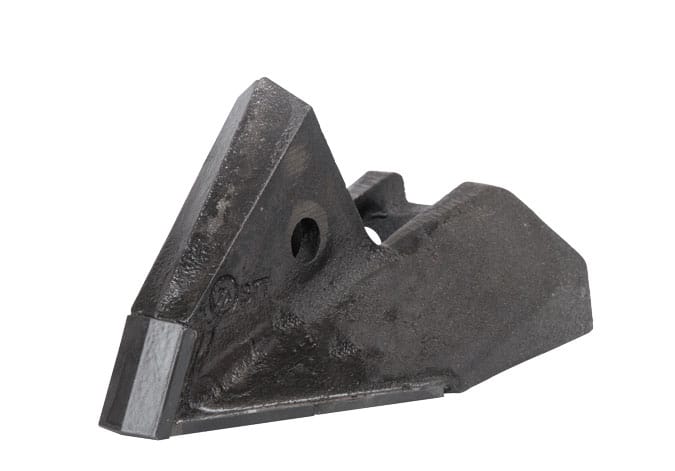

610-TIP-4041

Paired Row Tip

Cast chrome tip with carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside the wing to maintain a sharp cutting edge.

This 4” (102 mm) Paired Row liquid or granular double shoot tip has no vertical seed/fertilizer separation.

Learn more…

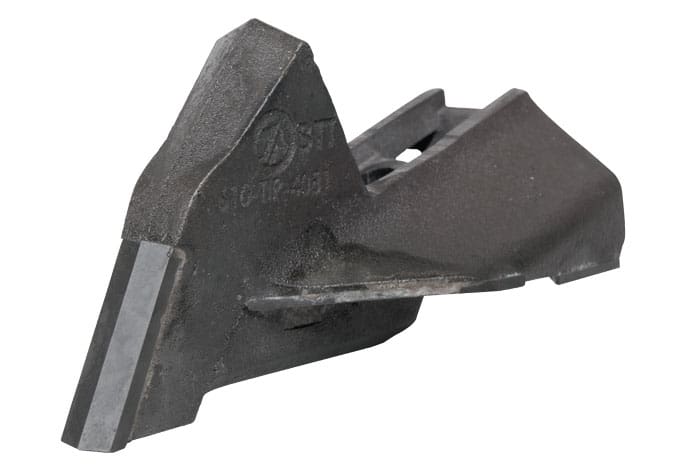

610-TIP-4081

Paired Row Tip

Cast chrome tip with carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside of the wing maintain a sharp cutting edge. Carbide inserts at the back of the underside of the wings seals up fertilizer trench prior to seed placement.

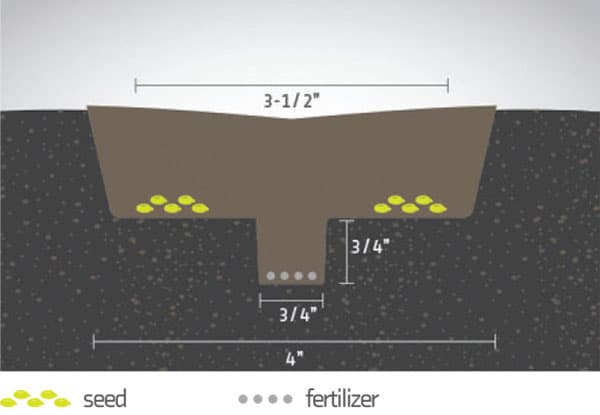

This 4” (102 mm) Paired Row tip has 3/4” (19 mm) vertical separation of liquid, granular, or NH3 fertilizer. Fits VOS (Versatile Opener System).

Learn more…

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

200-BNC-3100

Bolt & Nut Combo

This bolt and nut combination is used to secure tips with product numbers beggining in 200, 610, 612 & 614. It is important not to over tighten the bolt when installing the tips. The bolt has a strip of thread lock applied to the threads, so it needs only to be turned in by hand until the shoulder of the bolt makes contact with the nut.

The nut, 200-NUT-3101, and bolt, 200-BLT-3102, can be ordered separately.

Over torquing with a power drill will result in difficulty when removing. Recommended to torque to 84 in/lbs or 7 ft/lbs.
