Niaux 200. The Longest Wearing Disk Blade.

The life span of replacement parts is an important factor in the profitability of today’s farms. Increased working speeds and abrasive soils demand longer wearing and better performing disk blades. Choosing Niaux 200 replacement disk blades will result in longer wear, less downtime, and overall better performance of your tillage and seeding equipment.

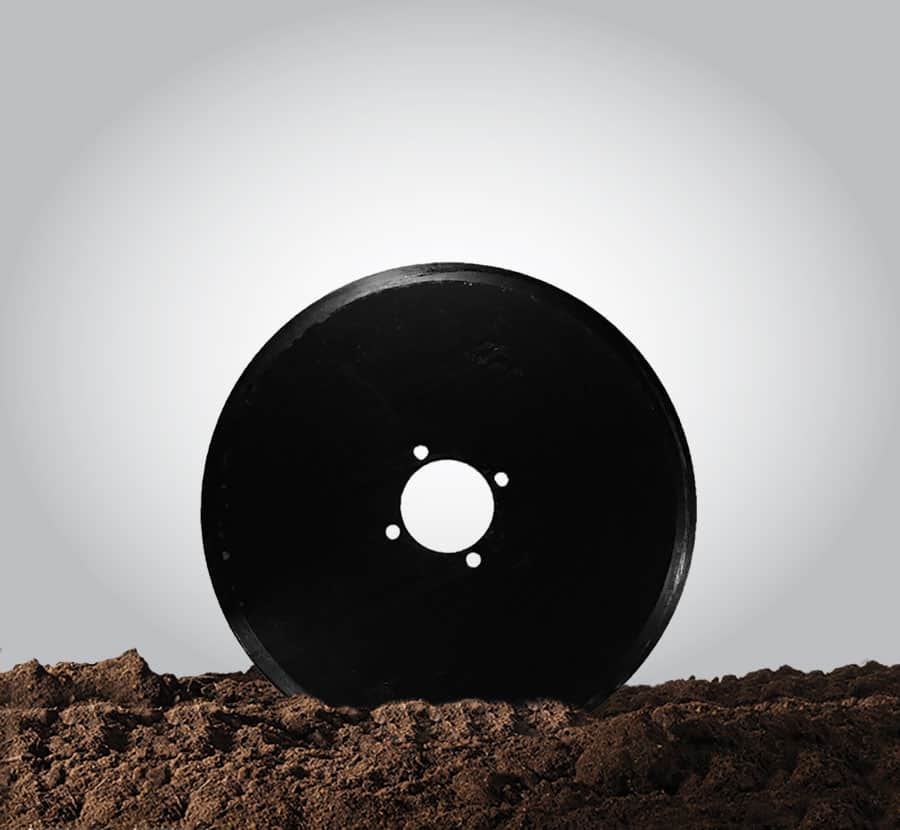

500-200-1005
Fits: CNH
  • Models: Case IH 500, 500T, NH P2080 & NH P2085
  • OEM Part No: 87488385
  • Disk Type: Flat Coulter
  • Dimensions: 18″ x 5 mm
  • Pilot Hole Size: 3.5″
  • # of Bolt Holes: 4
517-200-1015
Fits: CNH
  • Models: CIH, DMI, NH: 530, 530B, 570, 730, 730B, 730C, 870, 9300, ST770, ST775. Sunflower: 4410, 4411, 4412, 4510, 4511 & 4530. Brillion.
  • OEM Part No: 87443010
  • Disk Type: Plain Concave
  • Dimensions: 22-1/4″ x 5 mm
  • Pilot Hole Size: 4″
  • # of Bolt Holes: 5
503-200-1005
Fits: Cross Slot
  • OEM Part No: 5461015
  • Disk Type: Notched Coulter
  • Dimensions: 22″ x 5 mm
  • Pilot Hole Size: 3″
  • # of Bolt Holes: 6

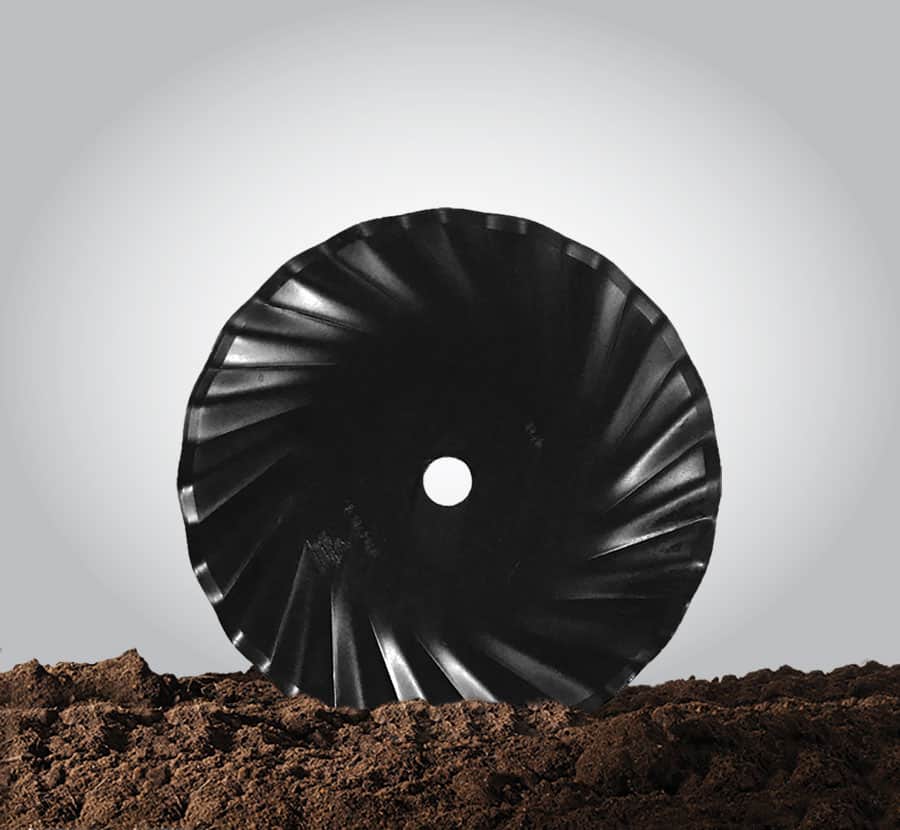

510-200-1000
Fits: Great Plains
  • Models: Turbo Chopper, Turbo Till & Turbo Till II
  • OEM Part No: 820-011C
  • Disk Type: 20 Wave RT Coulter
  • Dimensions: 20-1/2″ x 6.5 mm
  • Pilot Hole Size: 1-3/4″ Round
  • # of Bolt Holes: N/A
511-200-1000
Fits: Great Plains
  • Models: Turbo0Max, Vantage I Fertilizer Coulter, Zone Coulter & HD Utility Coulter
  • OEM Part No: 820-215C
  • Disk Type: 20 Wave RT Coulter
  • Dimensions: 18″ x 5 mm
  • Pilot Hole Size: 4″
  • # of Bolt Holes: 4

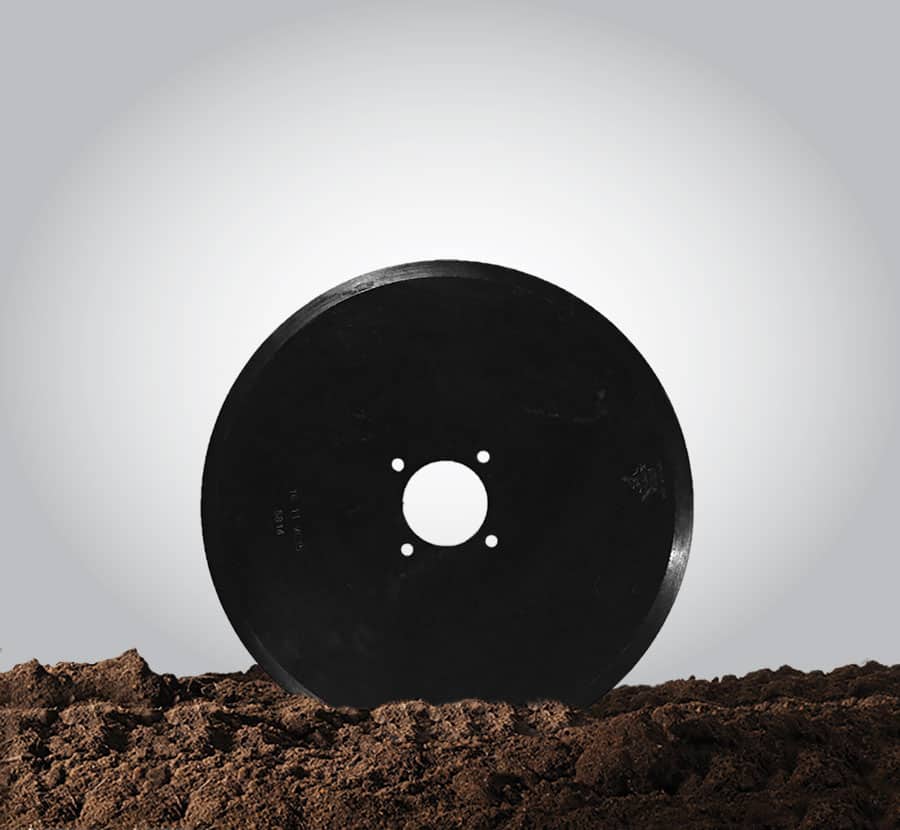

500-200-1010
Fits: John Deere
  • Models: JD 750, 752, 1560, 1590, 1690, 1850, 1860, 1890, 1890 CCS, 1895, 1990 & 1835 SFP Air Hoe
  • OEM Part No: N283804
  • Disk Type: Flat Coulter
  • Dimensions: 18″ x 5 mm
  • Pilot Hole Size: 3″
  • # of Bolt Holes: 4
501-200-1000
Fits: John Deere
  • Models: JD 450, 455, 515,520,1520, 8100, 8200, 8250, 8300, 8350, 8500, 8550, 9400, 9450, 730, 770, 780, 1060 & Frontier BD1108, BD1109, BD1013
  • OEM Part No: N283805
  • Disk Type: Domed Disk
  • Dimensions: 13-1/2″ x 2.5 mm
  • Pilot Hole Size: 1/2″ x 2/3″ Oval
  • # of Bolt Holes: N/A
522-200-1000
Fits: Lemken
  • Models: Heliodor 8
  • OEM Part No: 3490471
  • Disk Type: Notched Concave
  • Dimensions: 18″ x 5 mm
  • Pilot Hole Size: N/A
  • # of Bolt Holes: 6

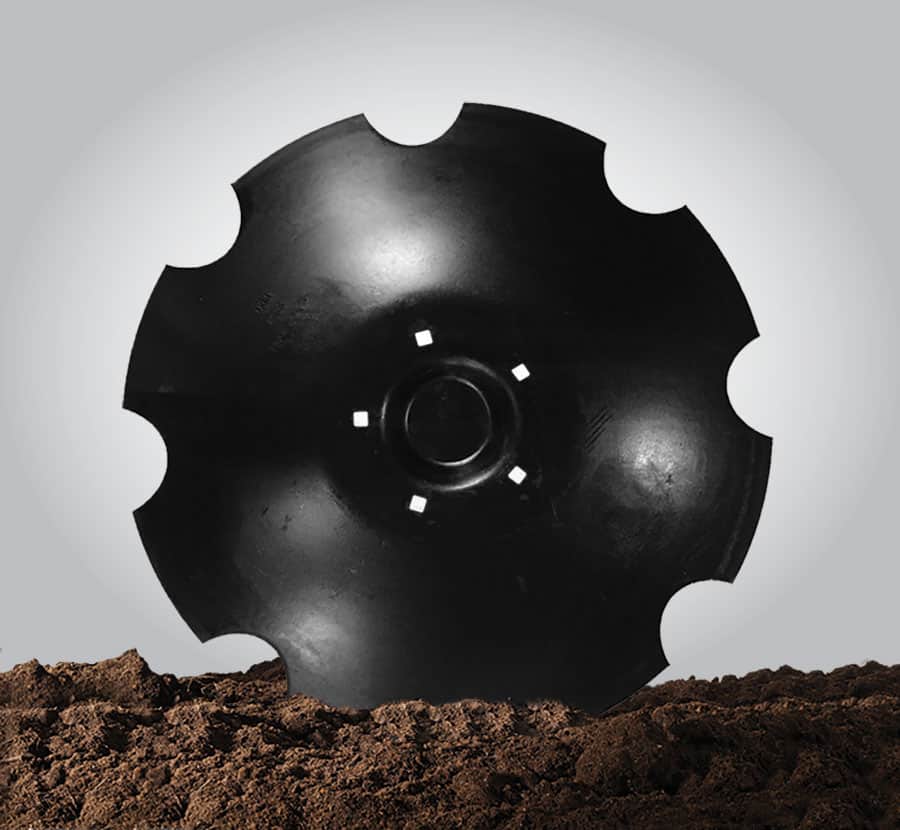

522-200-1005
Fits: Lemken
  • Models: Rubin 9 & Rubin 12
  • OEM Part No: 3490467
  • Disk Type: Notched Concave
  • Dimensions: 24-5/8″ x 6 mm
  • Pilot Hole Size: N/A
  • # of Bolt Holes: 5
522-200-1035
Fits: Lemken
  • Models: Heliodor 9
  • OEM Part No: 3490027
  • Disk Type: Notched Concave
  • Dimensions: 20″ x 5 mm
  • Pilot Hole Size: N/A
  • # of Bolt Holes: 4

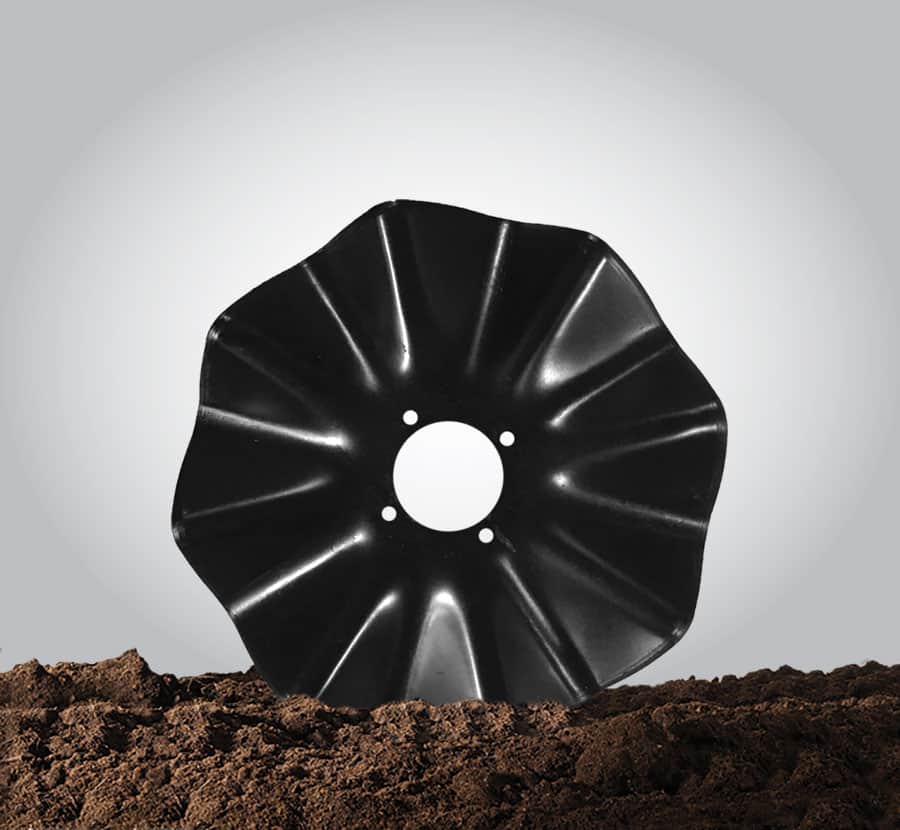

505-200-1000
Fits: Salford
  • Models: Salford I-1100 & Salford I-1200
  • OEM Part No: CT512008
  • Disk Type: 8 Wave Coulter
  • Dimensions: 20″ x 4.5 mm
  • Pilot Hole Size: 4″
  • # of Bolt Holes: 4
505-200-1005
Fits: Salford
  • Models: Salford I-1100 & I-1200
  • OEM Part No: CT512013
  • Disk Type: 13 Wave Coulter
  • Dimensions: 20″ x 4.5 mm
  • Pilot Hole Size: 4″
  • # of Bolt Holes: 4
505-200-1010
Fits: Salford
  • Models: Salford I-2100 (all rows), I-4100 (last 2 rows), I-4200 (all but front row)
  • OEM Part No: CT512208
  • Disk Type: 8 Wave Coulter
  • Dimensions: 21-3/4″ x 5 mm
  • Pilot Hole Size: 4″
  • # of Bolt Holes: 5
505-200-1015
Fits: Salford
  • Models: Salford I-2100 (all), I-4100 (last 2 rows) & I-4200 (all but front row)
  • OEM Part No: CT512213
  • Disk Type: 13 Wave Coulter
  • Dimensions: 22-3/4″ x 5 mm
  • Pilot Hole Size: 4″
  • # of Bolt Holes: 5
517-200-1015
Fits: Salford
  • Models: Salford I-4100 (first 2 rows), I-4200 (front row) & I-5100 (all rows) Sunflower: 4410, 4411, 4412, 4510, 4511 & 4530. Brillion.
  • OEM Part No: CT512250
  • Disk Type: Plain Concave
  • Dimensions: 22-1/4″ x 5 mm
  • Pilot Hole Size: 4″
  • # of Bolt Holes: 5
517-200-1020
Fits: Salford
  • Models: Optional on Salford I-5100
  • OEM Part No: CT503059
  • Disk Type: Plain Concave
  • Dimensions: 24-3/4″ x 6.5 mm
  • Pilot Hole Size: 4″
  • # of Bolt Holes: 5

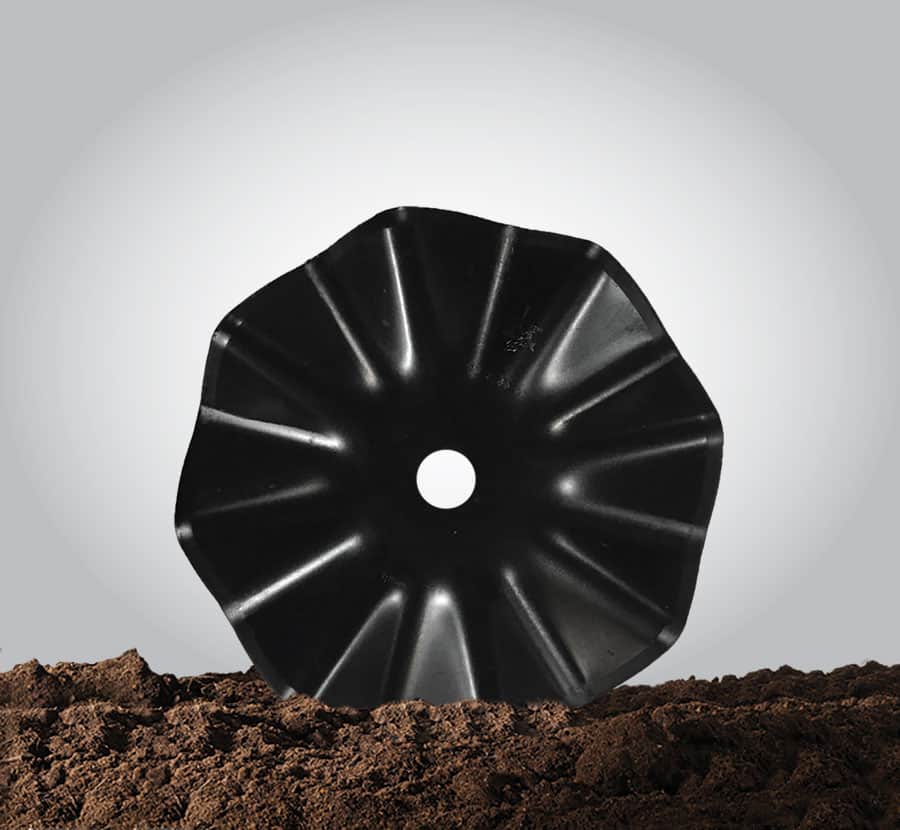

505-200-1020
Fits: Summers
  • Models: Summers Super Coulter & Coulter Chisel
  • OEM Part No: 8J1020
  • Disk Type: 8 Wave Coulter
  • Dimensions: 20″ x 6.5 mm
  • Pilot Hole Size: 2″ Round
  • # of Bolt Holes: N/A

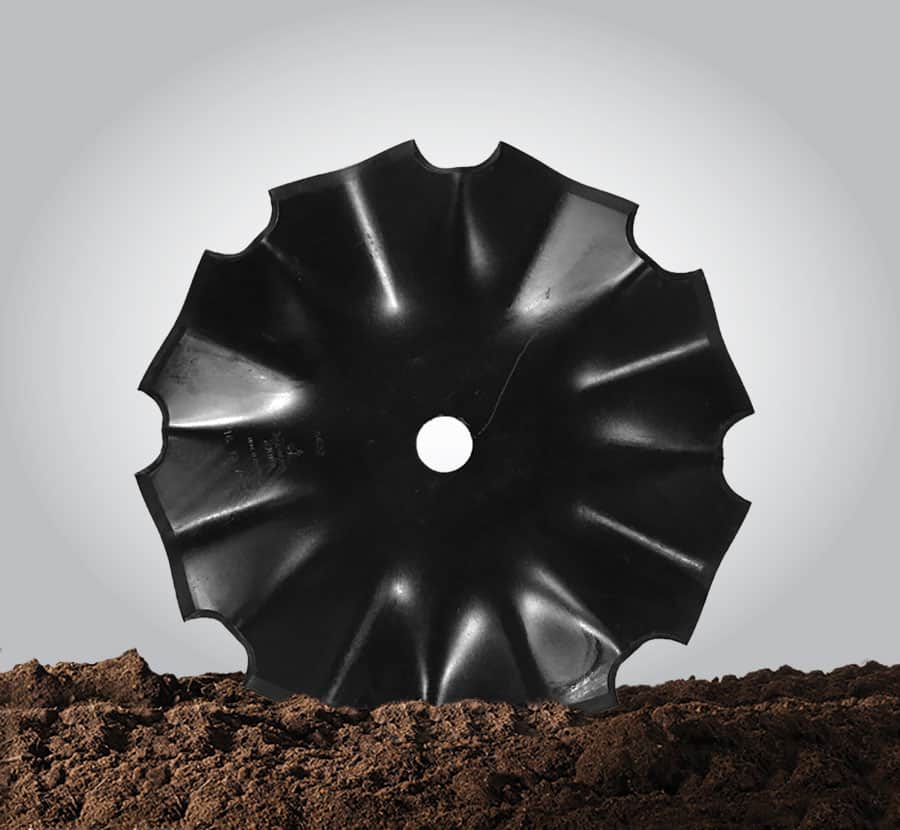

505-200-1025
Fits: Summers
  • Models: Summers Super Coulter & Coulter Chisel
  • OEM Part No: 8J1021N
  • Disk Type: 8 Wave Notch Coulter
  • Dimensions: 22-1/2″ x 6.5 mm
  • Pilot Hole Size: 2″ Round
  • # of Bolt Holes: N/A

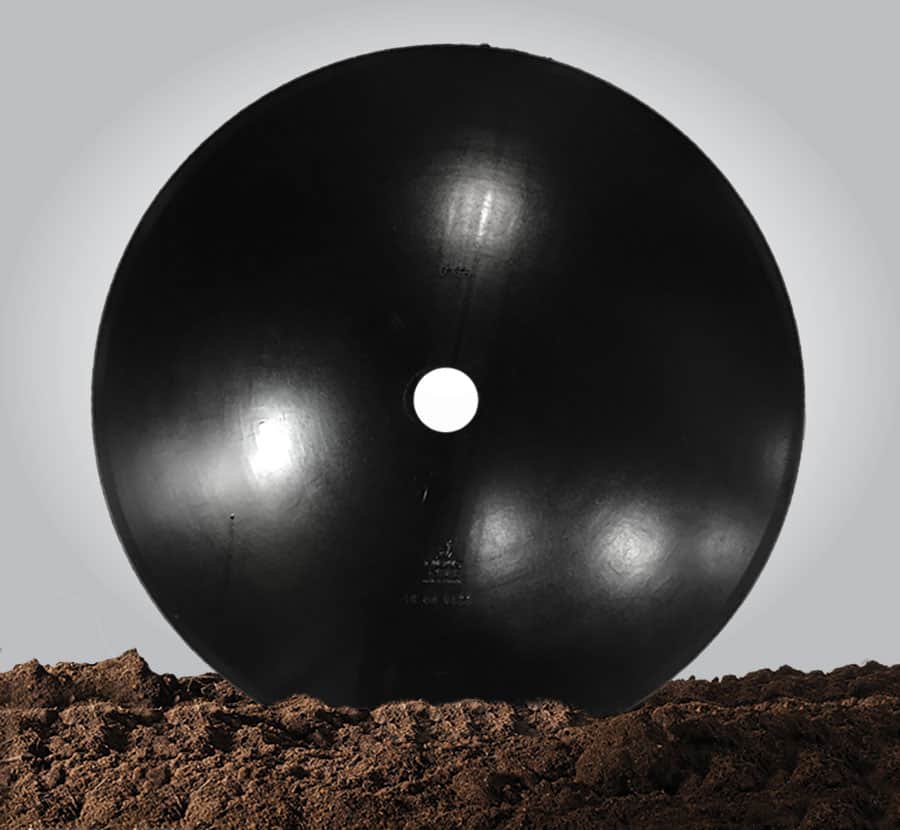

515-200-1000
Fits: Summers
  • Models: Summers DK Series Disk
  • OEM Part No: 8K5026
  • Disk Type: Plain Concave
  • Dimensions: 26-1/4″ x 6.5 mm
  • Pilot Hole Size: 2″ Round
  • # of Bolt Holes: N/A
521-200-1000
Fits: Summers
  • Models: Summers DT Series Disk
  • OEM Part No: 8K5025N
  • Disk Type: Notched Concave
  • Dimensions: 25″ x 8 mm
  • Pilot Hole Size: 2″ Round
  • # of Bolt Holes: N/A

LESS WEAR & MORE PERFORMANCE

As a farmer you know what it takes to be successful. Seeding and Tillage are too important to entrust to anyone other than Bourgault Tillage Tools. Customers have come to trust BTT to deliver industry-leading products for whatever brand of machine you pull in the field.

We are committed to providing our customers with exceptional customer service. To keep your operation running smoothly we offer high quality products backed by the best warranty and performance guarantee in the market.  This commitment led us to form a valuable partnership with Forges de Niaux allowing us to bring their disk blades to our local markets.

With over 70 years of disk blade manufacturing experience, Forges de Niaux has been on the leading edge of many innovative ideas. With generations of experience under their belt, the latest line of disk blades, the Niaux 200, were released. These disk blades are made from high quality steel and a new heat treatment process. Forges de Niaux is the only manufacturer in the world to offer disk blades with hardness levels up to 58 HRC.  These disk blades offer 3 zones of hardness. The lowest level of hardness is found in the center core of the disk, where it is mounted, providing flexibility for shock absorption. Increased durability comes from the transitional zone while the outer edge offers the highest level of hardness providing 20 to 40% longer wear.

DISK BLADES FOR OEMs

The evolution of disk drills over the past few years has pushed us to find innovative solutions for OEMs.

Niaux 200 disk blades have consistently high qualities, including maintaining tight tolerances for shape control, a machined edge for superior penetration in hard soil conditions, and a durable edge that stands up in rocky conditions with no chipping or cracking. The special heat treating process provides an increased hardness of the outer disk area result in a self-sharpening wear pattern that extends the blade life and requires less horsepower resulting in better fuel economy.
