BUSHINGS TO ADAPT TO DIFFERENT AIR HOSE SIZES

300-BSH-1200

This bushing adapts from a 1-1/8” (28 mm) O.D. air hose up to a 1-1/4” (32 mm) O.D. air hose.

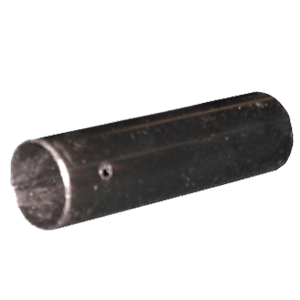

300-BSH-1205

This bushing adapts from 1-1/8” (28 mm) O.D. air hose to 1-1/8” (28 mm) O.D. air hose.

880-BSH-1130

This bushing is needed when you are using 1-1/8” (28 mm) hose.

880-BSH-1150

This bushing adapts from 1-1/4” (32 mm) O.D. air hose up to a 1-1/2” (38 mm) O.D. air hose.

880-BSH-1170

This bushing adapts 1-1/2″ (38 mm) O.D. hose to 1-1/4″ (32 mm) knives.

880-BSH-2000

This bushing is to be used on John Deere split shanks.

ACCESSORIES

100-DRV-1010

This driver should be used for installing the following knives: 200‑KNF-0861, 200-KNF-0863, 200-KNF-7510, 200-KNF-7511, 200-KNF-7518, 200-KNF-7542, 200-KNF-7520, 200-KNF-7521, 200-KNF-7524, 200-KNF-7525, 200-KNF-7530 and 200-KNF-7531.

100-DRV-1020

This driver is used when installing the 200-HOE-1700 onto the adapter.

200-DRV-1012

This driver should be used for installing the 200-KNF-0813.

200-DRV-1013

This driver should be used when installing knives with the following tips: 200-TIP-2011, 200-TIP-0300, 200-TIP-3001, 200-TIP-3011 and 200-TIP-4011. It should also be used when installing the 200-KNF-0501, 200-KNF-0571 and 200‑KNF‑0575.

200-DRV-1030

This driver should be used when installing the following openers: 200-KNF-0505, 200-VRT-1000, 200-VRT-1011, 200-VRT-1016, 200- VRT-1061 and 410- VRT-1000. It should also be used when installing knives with the following tips: 200-TIP-0503, 200- TIP-0507, 200-TIP- 0523, 200-TIP-0524, 200-TIP-0531 and 200-TIP-1011.

400-DRV-1000

This driver can be used when installing any of the quick change sweeps and spoons.

400-DRV-1010

This driver should be used when installing the following knives: 200-KNF-0810, 200-KNF-0811, 410-KNF-0800 and 410-KNF-0801. It should also be used for installing knives with the following tips: 200-TIP-0800 and 200-TIP-0801.

100-WDG-0700

This 7° urethane wedge is designed to correct the pitch of the 100-QCA-5010 and the 200-QCA- 5010 adapters on 43° shanks.

200-WDG-0206

This 2° urethane wedge has 45 mm to 80 mm bolt hole spacing. It is used to obtain proper sweep pitch on certain shanks.

200-WDG-0506

This 5° urethane wedge has 45 mm to 80 mm bolt hole spacing. It is used to obtain proper sweep pitch on certain shanks.

200-WDG-1000

This 10° urethane wedge has 45 mm to 80 mm bolt hole spacing. It is used to obtain proper sweep pitch on certain shanks.

200-WDG-1006

This 10° urethane wedge has 45 mm to 80 mm bolt hole spacing. It is used to obtain proper sweep pitch on certain shanks.

400-WDG-0300

This 3° urethane wedge is designed to correct the pitch of the 410-QCA-5010 adapter on a 47° chisel plow shank, as well as the 50° bolt-on sweeps.

400-WDG-0700

This 7° urethane wedge is designed to correct the pitch of the 410-QCA-5010 adapter when installing on a 43° shank. It should also be used with the 600 Series knives when installing on a 43° shank.

880-WDG-0300

This cast wedge adapter is designed for our 047, 610 and 612 seeding openers on all John Deere shanks.

880-WDG-0301

This cast wedge adapter is designed for our 047, 610 and 612 seeding openers on all 47° & 50° curved bottom shanks.

200-QAS-4711

This sub-plate is used in conjunction with the 200-QCA-4710 adapter on the Kongskilde VFM shank.

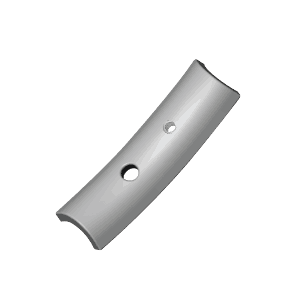

200-QAS-4712

This sub-plate is used in conjunction with the 200-QCA-4710 adapter on an S-tine. S-tines with a single hole can now use the Speed-Loc™ system.

100-HAM-4000

This 4 lb (1.8 kg) hammer is ideal for installing all quick change products.

200-REL-1010

The speed-release tool must be used to remove 200 and 410 Series sweeps and openers off the Speed-Loc™ adapters.

047-ACC-1001

Helps direct the flow of seed in a focused row behind the opener. Use with 047-ASY-1000, 047-ASY-1005P or 675 Series openers.

047-ACC-1002

Allows you to adapt to any shank with an open bottom hole. Keeps the bottom bolt in place on the John Deere 1820, 1830 & 2400.

047-CAP-1000

This cap is a replacement cap for the 047-ASY-1000 and 047-ASY-1005P.

600-HHA-0750

This stainless steel hose holder mounts on any C-Shank to hold the NH3 hose in place. It is completely height adjustable.

680-ACC-0001

This spacer plate is required for the Concord when installing any edge on product.

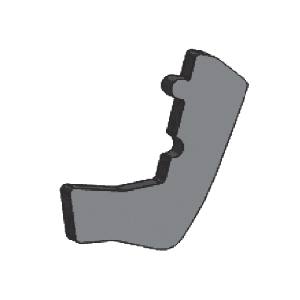

680-ACC-0002

Spacer required when a 680-ASY-4026 is mounted on a Bourgault 3310 & 3320 PHD Drill.

680-ACC-0003

Spacer required when a 680-ASY-4020 is mounted on a Bourgault 3310 & 3320 PHD Drill.

680-ACC-0004

This conversion tab replaces the fertilizer tube on the 680-HLD-2000 so it can be converted to a single shoot opener.

680-ACC-1000

Helps direct the flow of seed in a focused row behind the opener. Use with 680-ASY-1000 openers prior to 2012.

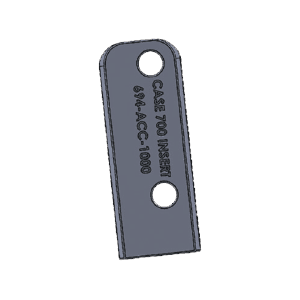

694-ACC-1000

This spacer is required when installing Titan Openers on anything except Concord.

880-ASY-1010

This assembly is required to convert the standard 3/16” (5 mm) O.D. liquid phos tube to 1/4” I.D. Liquid Phosphorus delivery hoses on the 047-ASY-1005P and 680-ASY-1000P.

880-CPL-1010

This barb and compression fitting are used when going from 1/4″ (6 mm) I.D. liquid phosphorus tube to 3/16″ stainless steel liquid phos tubes.

880-CPL-2500

This coupler is used to attach a 1/4” (6 mm) O.D. liquid phosphorous tube. Included with all new liquid phosphorous openers.

880-GRD-1000

This guard is used to protect liquid hose on all side band liquid openers in heavy trash conditions.

880-GRD-1010

This guard is used to protect liquid phosphorus tubes on 047 & 680 liquid phosphorus openers in heavy trash conditions.

880-HCL-0001

This clip eliminates hose movement, as the sharp corners embed into the granular pipe.

880-HCL-0002

Spacer clip may be required on the rear tube of the following side band openers: 683, 684, 686, 693, 694 where 1-1/8” (29 mm) hose is used.

880-ORF-0001

This orifice is used to concentrate and direct the flow of liquid fertilizer on the 200-VRT-1061 and 200‑KNF-0863.
